Double-wedge model

Pull-down workholding clamps generate pull-down action pressing workpieces down onto the fixture base, as an alternative to applying sideways force to the jaw on the fixture base.

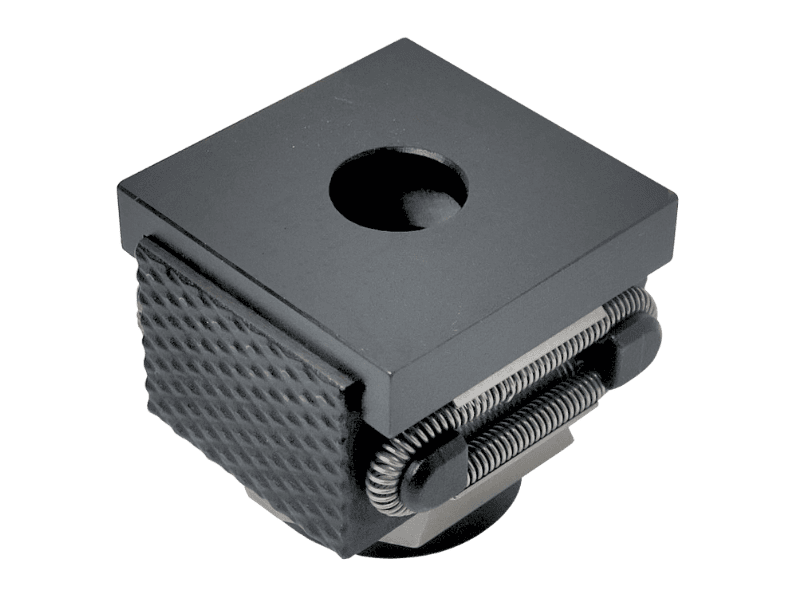

The double-wedge pull-down clamp is the most traditional model. It is available with both a serrated and smooth jaw option.

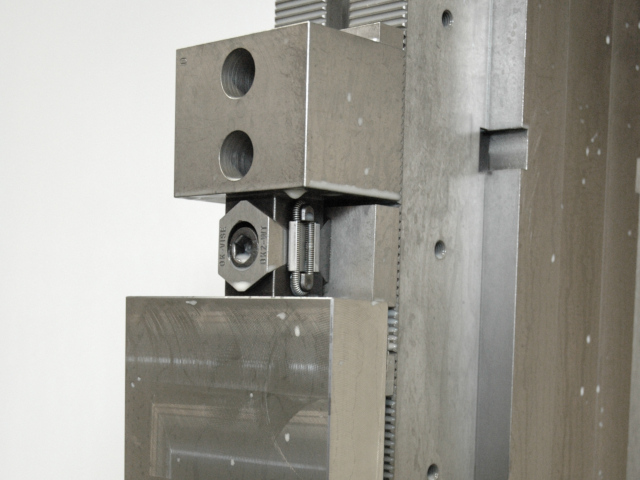

Whilst single-wedge clamps keep workpieces tight in one place, preventing upward and downward movement the double-wedge clamps generate a pull-down effect, pressing the workpieces downwards onto the fixture base.

The F-size model with its extreme clamping force of 150 kN is the strongest model in our range of low-profile clamps.
