Multi-Rail RM

Reduce setup time and streamline manufacturing processes with the Multi-Rail RM

Compared to a traditional machine vise, the Multi-Rail system offers the following benefits:

  • Using the components of the system, even the most challenging workpiece types can be machined
  • All sides of a workpiece can be machined with two setups
  • Multiple workpieces can be clamped simultaneously
  • Workpiece will be safely fixtured
  • It is also possible to clamp very large workpieces
  • Multi-Rail RM system modules are the most accurate multiple clamping modules on the market, most of them giving 10 micron accuracy
  • Maximum clamping force that can be applied to the base rail is 6 metric tons ( 60 kN)

To enable an easy start with OK-VISE components, we have put together fixture sets.

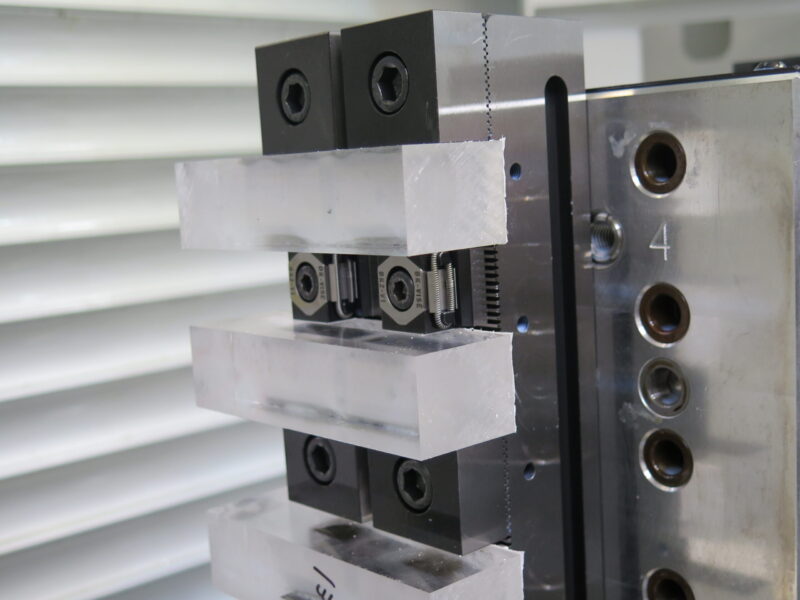

Multi-Rail multiple workpiece clamping.
Modular workholding system Multi-Rail RM.

Reduce setup time and streamline manufacturing processes with the Multi-Rail RM

Compared to a traditional machine vise, the Multi-Rail system offers the following benefits:

  • Using the components of the system, even the most challenging workpiece types can be machined
  • All sides of a workpiece can be machined with two setups
  • Multiple workpieces can be clamped simultaneously
  • Workpiece will be safely fixtured
  • It is also possible to clamp very large workpieces
  • Multi-Rail RM system modules are the most accurate multiple clamping modules on the market, most of them giving 10 micron accuracy
  • Maximum clamping force that can be applied to the base rail is 6 metric tons ( 60 kN)

To enable an easy start with OK-VISE components, we have put together fixture sets.

Multi-Rail multiple workpiece clamping.
