Precision and Flexibility

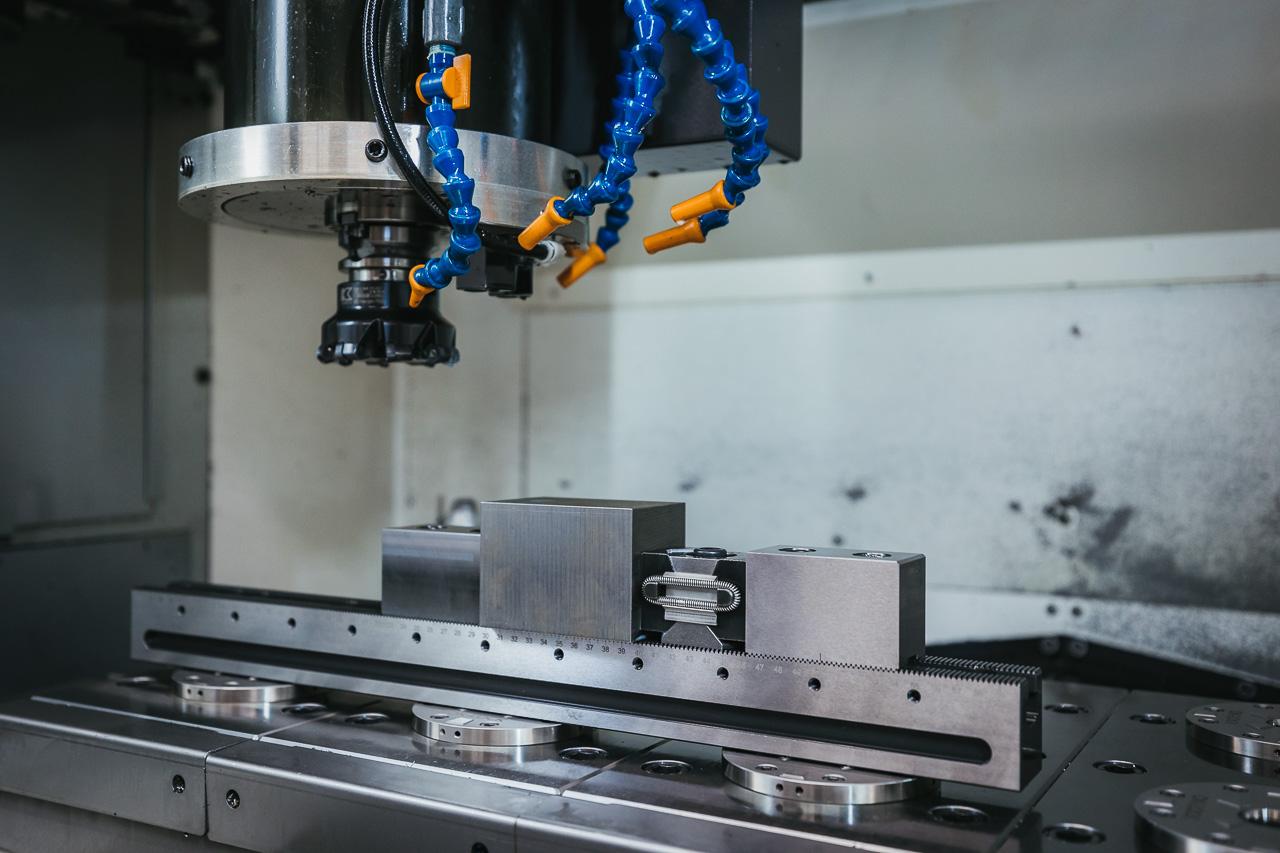

Modular workholding with OK-Vise® Multi-Rail System

OK-VISE® Multi-Rail system is a simple way to build high precision modular fixtures.

The Multi-Rail System adapts easily to various workpiece sizes, and the components of these systems can be reused and reconfigured quickly and easily for a variety of applications and workpieces. This means lower costs in fixtures and more flexibility in production!

The system adapts to all possible workholding platforms like T-slot, blank, and grid platform. The size is selectable from three different categories: low, medium, and high.

Not sure whether a modular or custom fixture is better? Take a look at our instructions for choosing a right fixturing system.

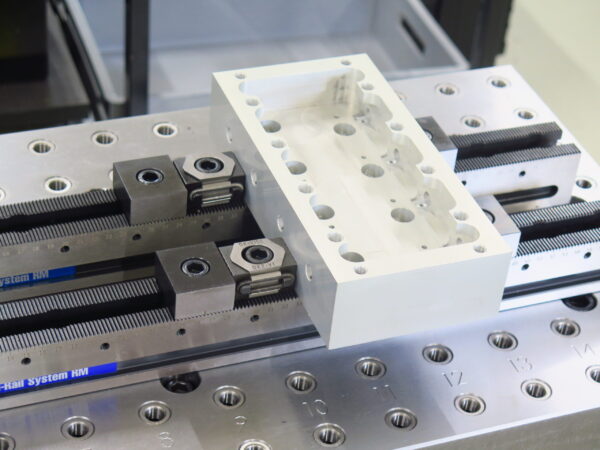

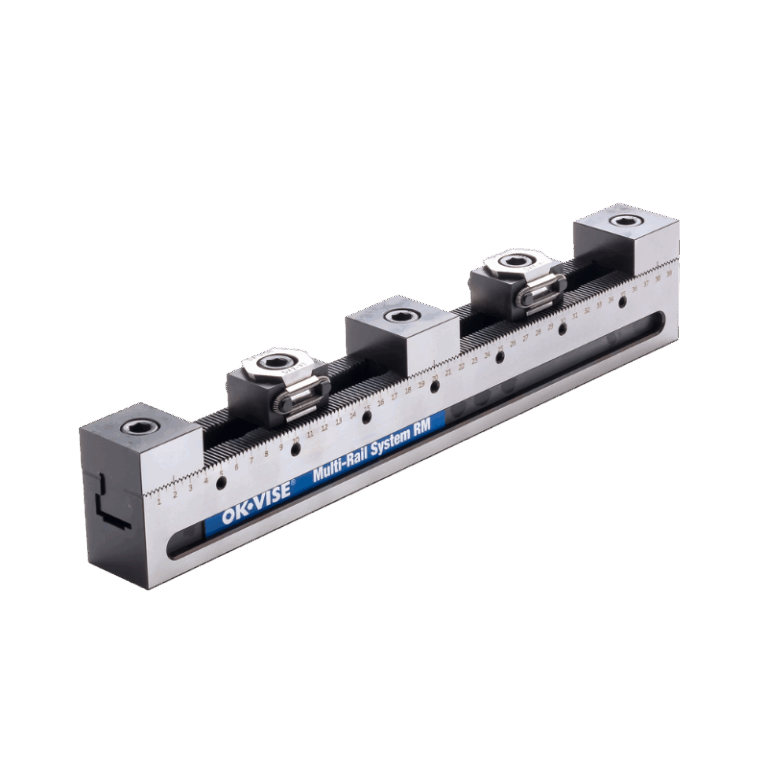

Multi-Rail RM

A long-term choice for workholding

Our best seller in modular workholding systems enable you to build different fixtures from the same components. The KEY benefits are:

  • Adapts even the most challenging workpiece types.
  • Multiple workpieces can be clamped simultaneously.
  • Market leader in accuracy: up to 10-micron.
  • Clamping force up to 6 metric ton.
  • Setup can be changed depending on the workpiece.

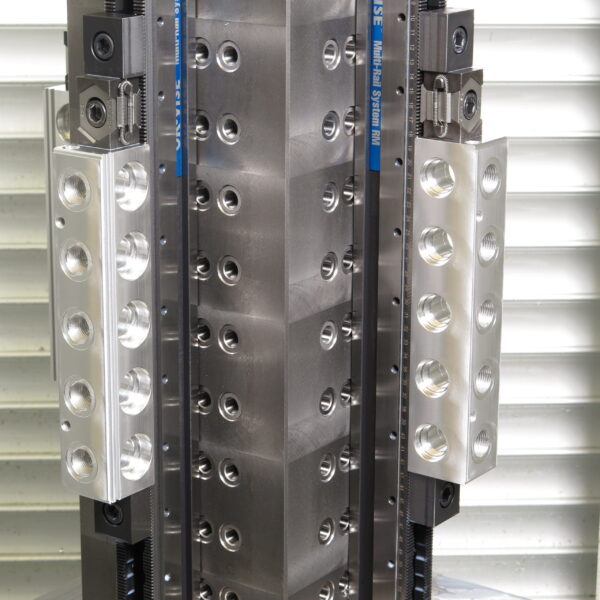

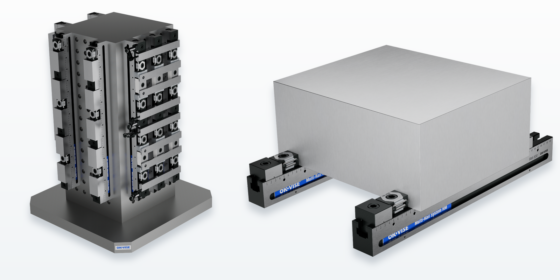

Applications

More Multi-Rail System categories

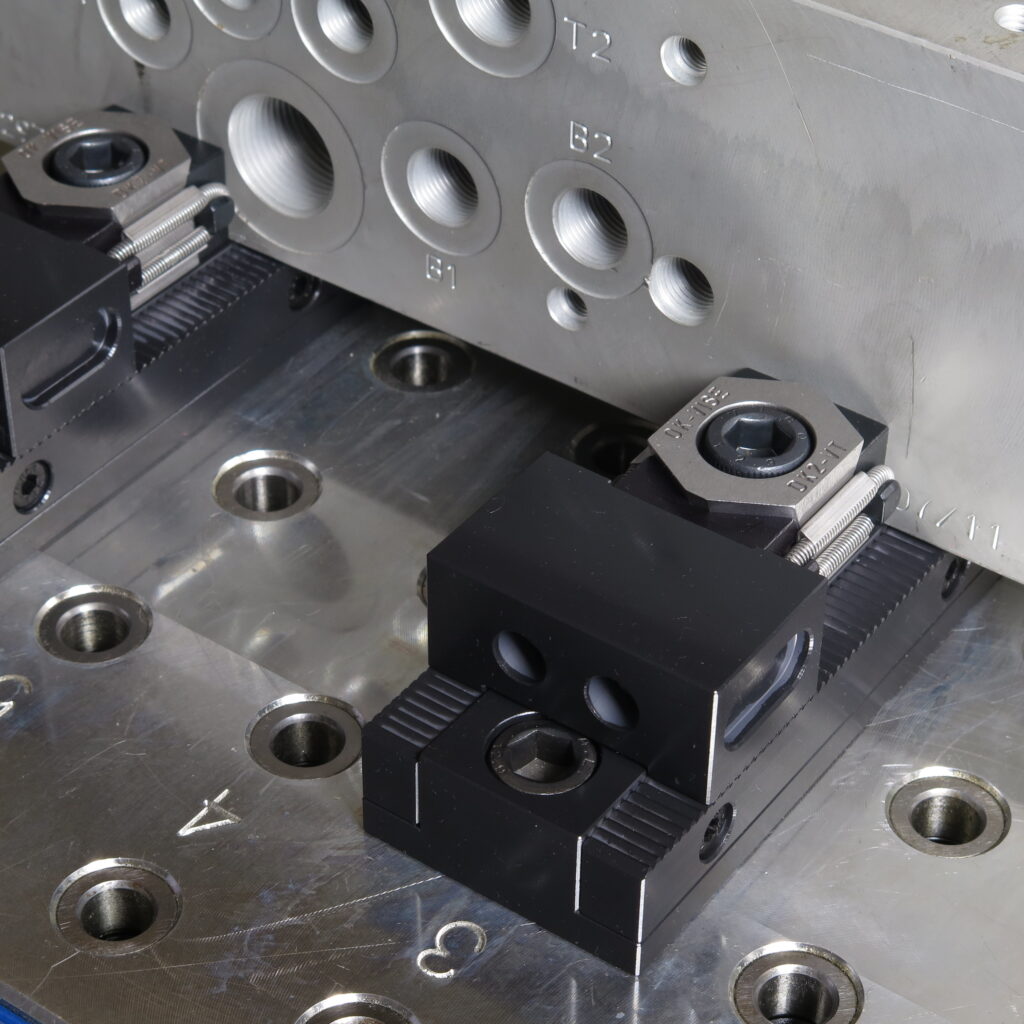

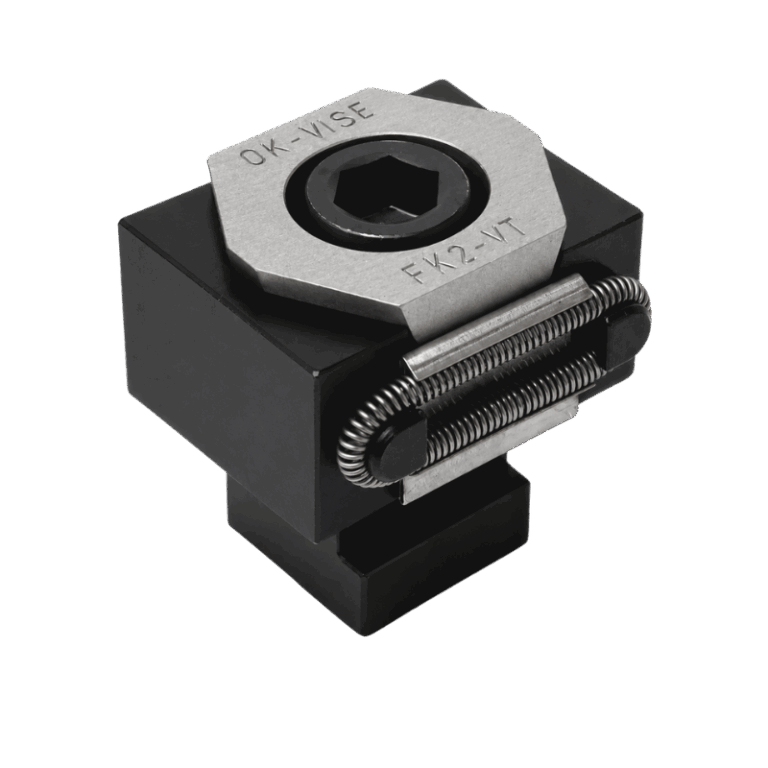

single wedge rh clamp fixture application.

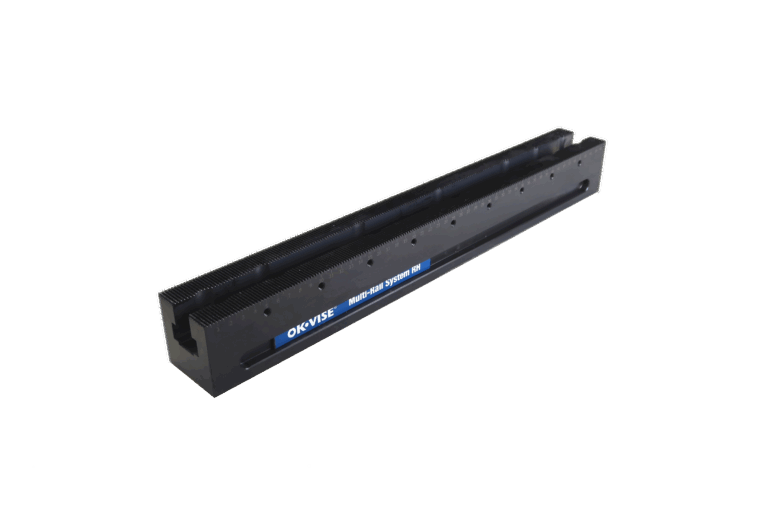

  • More height in the base rail

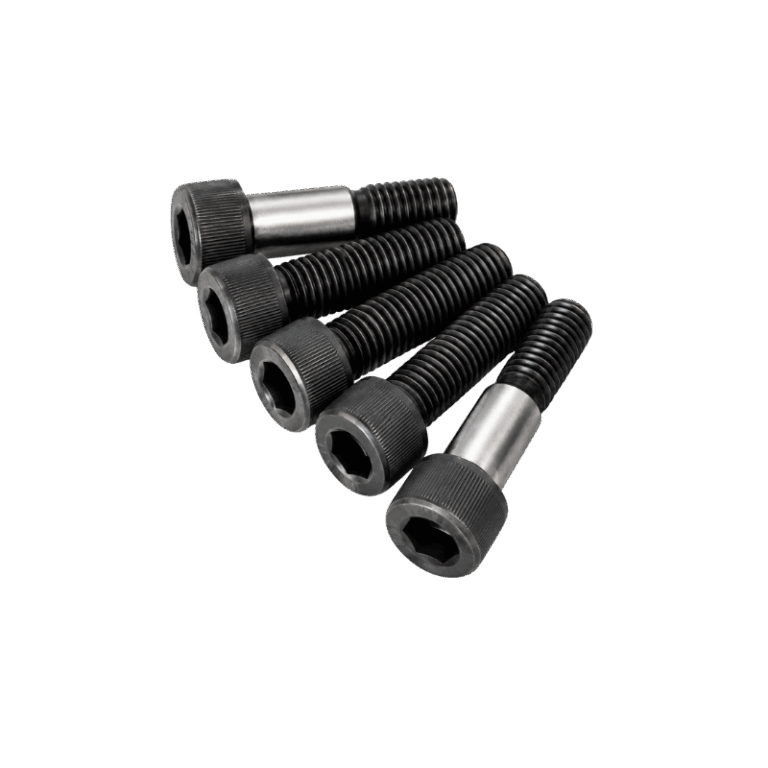

  • Drag installation with M16 bolts

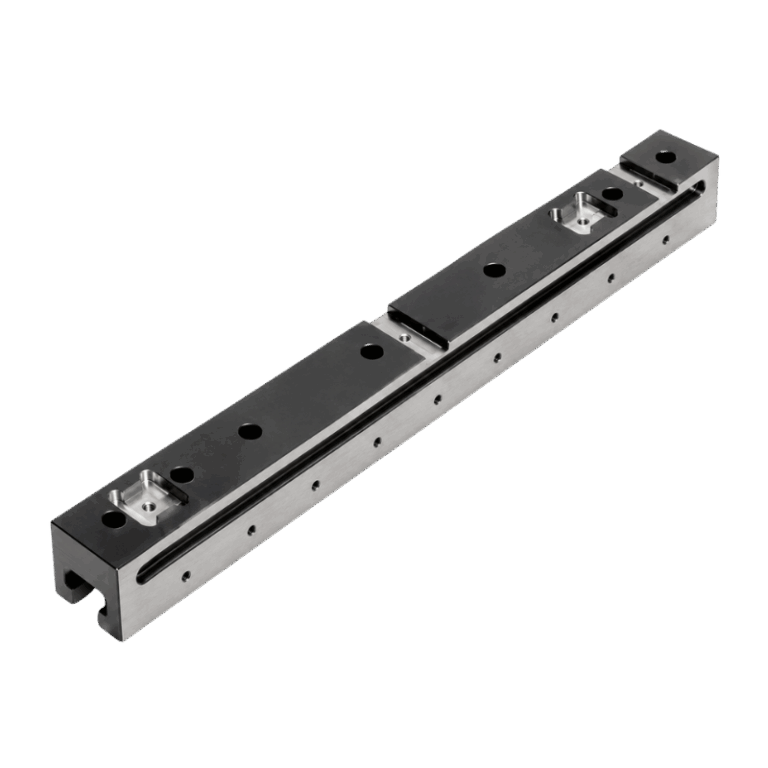

  • Base rail Profile 60 x 60

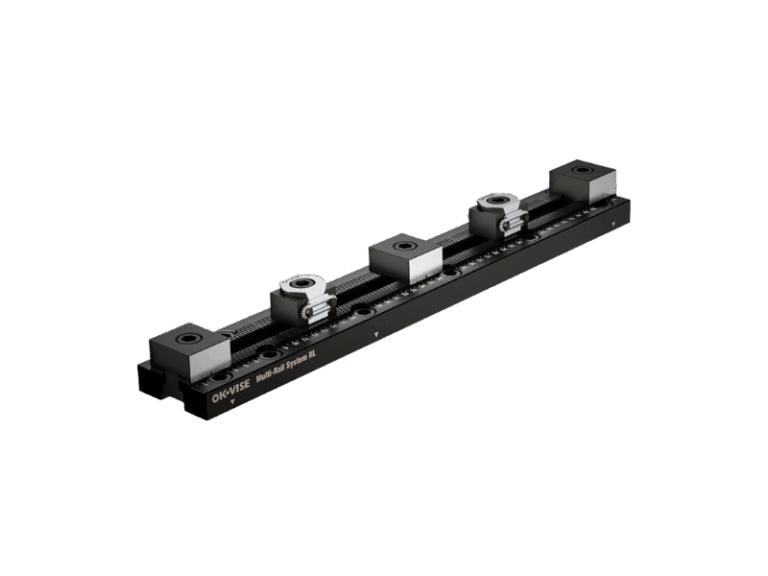

Multi-Rail RL workholding fixture application.
  • Lower in profile
  • Even workpieces with very complex form can be clamped

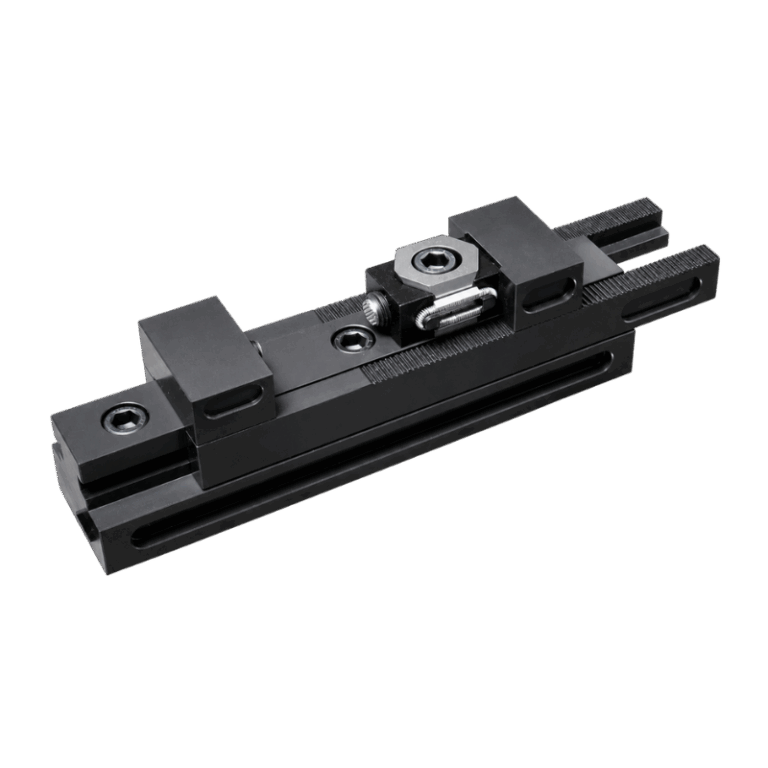

Combo rail modular workhold.

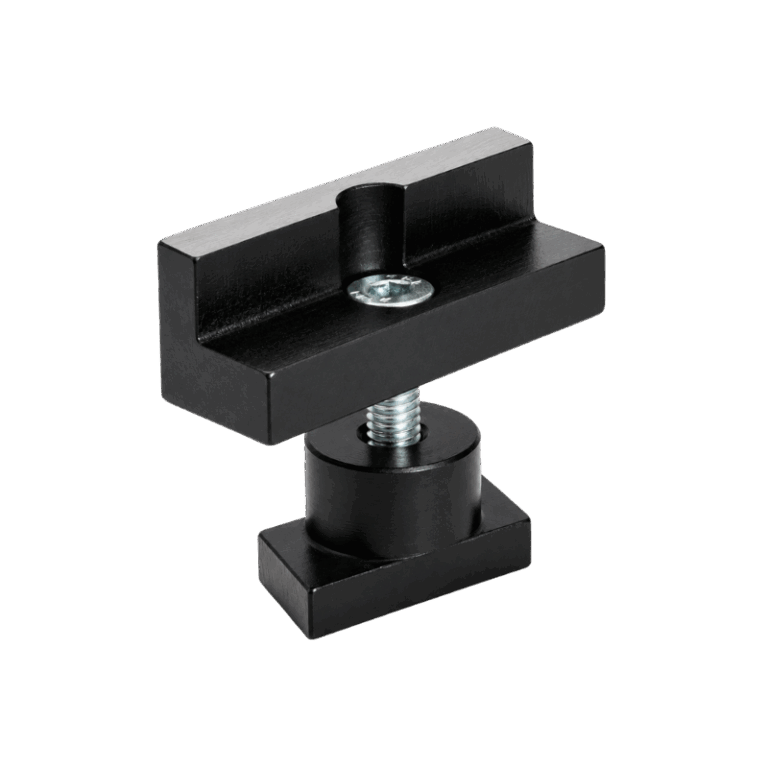

  • Support elements for complex shaped workpieces
  • RM- and RL system compatible



Check out the ready-made sets

To enable an easy start with OK-VISE components, we have put together example Fixture Sets

Get A Free Consultation

In addition to our dealers, we also offer technical support to our customers. Feel free to contact us even with difficult questions.
