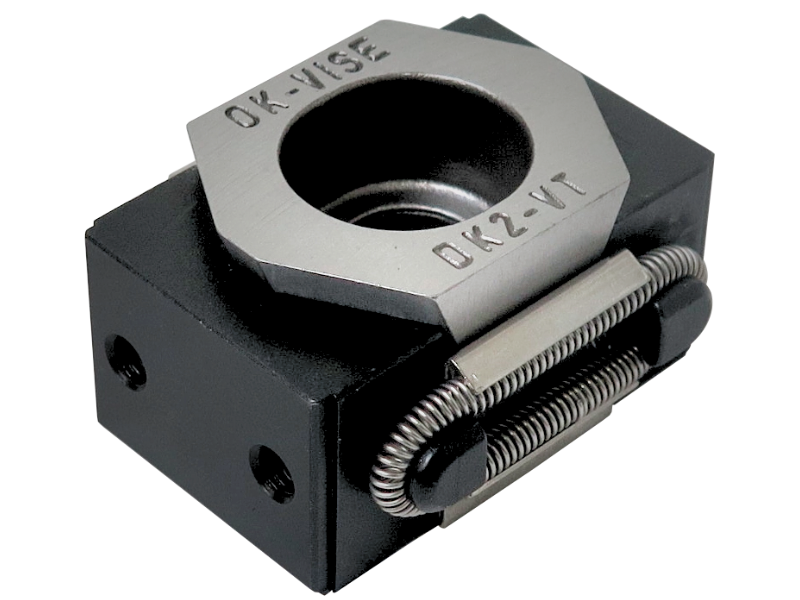

Smooth model

The smooth jaw workholding clamps are specifically engineered to securely hold your workpiece without leaving any visible marks or scratches.

Our smooth jaw clamps are among OK-VISE’s oldest designs and remain a popular choice due to their low profile and durability. Made with high-quality materials, the clamp is built to last, saving you money and time. The clamp is easy to install and adjust, allowing you to quickly and efficiently secure your workpiece with precision.

Details

Type	A min	A optimum	A max	B	C	D	E	Socket Head Srew DIN 912	Pressing force of Jaws (max), kN	Tightening torgue (max), Nm	Weight in g (*oz)	Hardness of Jaws HRC	Dimensions	STEP (3D)
BK2-VT-S	27	29	31	29	15	21	2.5	M8x20	25	44	55	48-52
DK2-VT-S	42	45	49	41	22	30	4	M12x30	65	145	180	48-52
DK2-VTI-S (inch model)	1,65	1,77	1,92	1,61	0,86	1,18	0,15	1/2-1 1/4	65	145	6,34*	48-52
FK2-VT-S	57	60	64	56	29	42	5	M16x40	110	360	465	48-52
