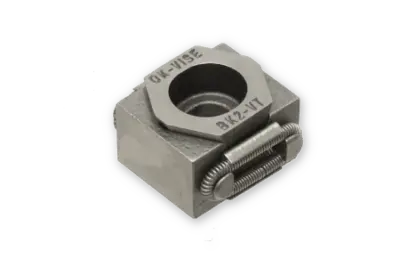

Stainless steel model

The high quality stainless steel low-profile clamp is designed to meet the demands of wire EDM applications.

It also works effectively in welding applications.

This model is available with a smooth-ended jaw configuration.

The stainless steel model is an analogue of BK2-VT-S (our ‘B’-size smooth jaw model) , except in stainless steel material.

Details

Type	A min	A optimum	A max	B	C	D	E	Socket Head Srew DIN 912	Pressing force of Jaws, kN	Tightening torgue, Nm	Weight in g approx.	Hardness of Jaws HRC	Dimensions	STEP (3D)
BK2-VT-SS	27	29	31	29	15	21	2.5	M8x20	25	44	55	48-52

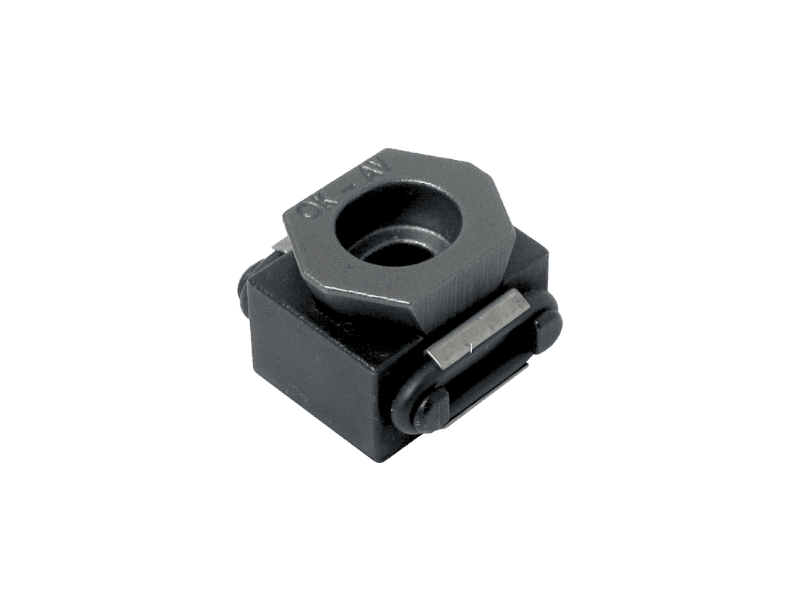

Additional piece model

In addition to our dealers, we also offer technical support to our customers. Feel free to contact us even with difficult questions.
