Clamp Modules D-Series

Clamp modules for Multi-RM System are based on OK-VISE low-profile clamps, added with a bolt and T-Nut for base rail. All the jaw types, such as serrated (R), smooth (S), tungsten-carbide (D), additional piece models (T), grip models (G), self-aligning (B) and machinable (M) are available for the Multi-Rail RM system.

Features:

  • The maximum clamping force of these clamp modules is typically 60 kN.

Details

Please note: The product options below are the most commonly used clamp modules. However, it is possible to order the clamp module with any combination of available jaws. You can explore more jaw options available from our low-profile clamps section.

Type Jaw types
 A min A optimum A max Tightening torgue, Nm Weight in g. Inc. clamp Inc. T-slot set Dimensions STEP (3D)

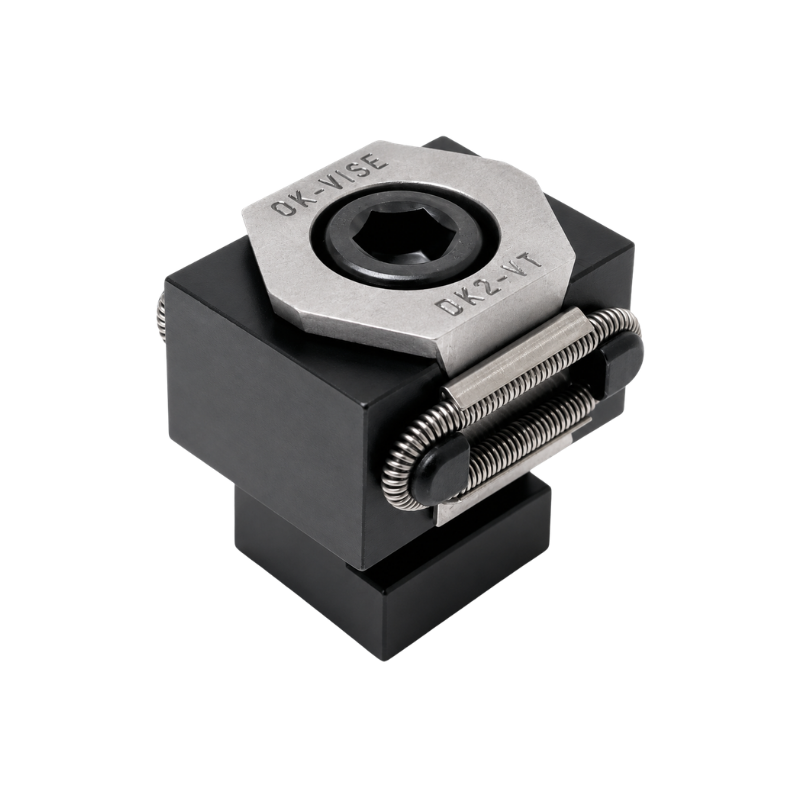

RMC-DS Smooth
 42 45 49 145 280 DK2-VT-S RMA-D1 icon pdf

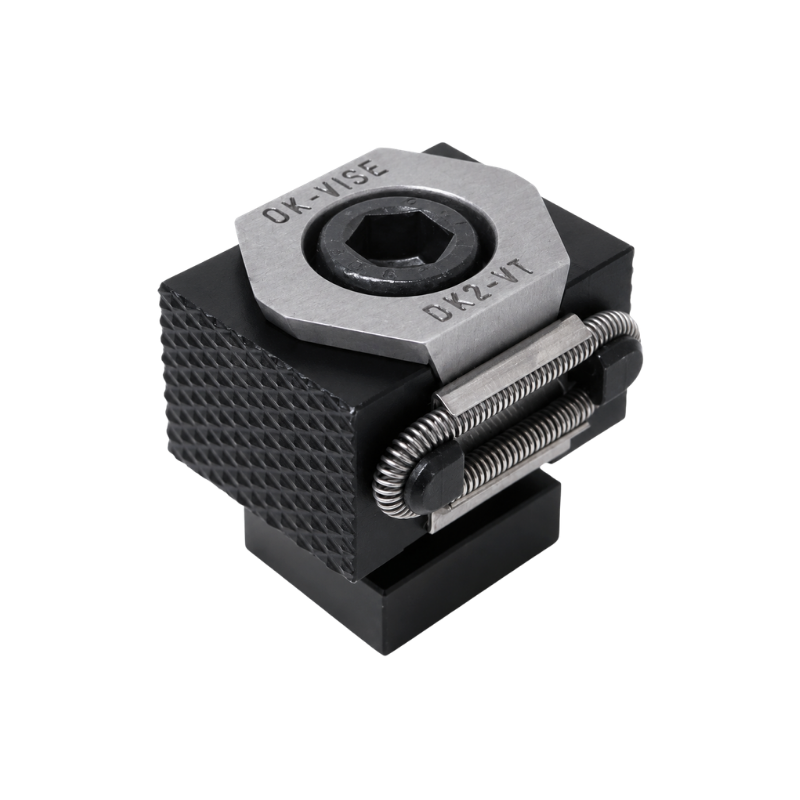

RMC-DR
 Serrated 42 45
 49 145 280 DK2-VT RMA-D1 icon pdf
RMC-DSR
 Serrated/ Smooth 42 45
 49 145 280 DK2-VT-SR RMA-D1 icon pdf
RMC-DT
 Additional piece 46 49
 53 145 300 DK2-VT-T RMA-D1 icon pdf
RMC-DTS
 Additional piece/ Smooth 44 47
 51 145 290 DK2-VT-TS RMA-D1 icon pdf
RMC-DD Tungsten carbide 44 47
 51 145 290 DK2-VT-D RMA-D1 icon pdf
RMC-DDS Tungsten carbide / Smooth 44 47
 51 145 290 DK2-VT-DS RMA-D1 icon pdf
Jaw combinations:

All the jaw types, such as serrated (R), smooth (S), tungsten-carbide (D), additional piece models (T), grip models (G), self-aligning (B) and machinable (M) are available for the Multi-Rail RM system. If necessary, jaw types can also be combined so that one jaw is different from the other.

If you can´t find a suitable clamp module for your needs, take a look at our low-profile clamps and use adapter sets.

Couple of examples of RM systems clamp modules in size D are RMC-DR and RMC-DS, where the end of the code typically describes the type of the jaw – or jaws in case the jaws are diffrent.
