Additional piece model

Additional piece models have machined female threadings (M5) for socket head screws on the side of the jaw face, making it quick and easy to use various additional pieces which can also be machined into different shapes.

Additional pieces can be produced from differing materials such as plastic, aluminium or steel, depending on the workpiece material.

N.B. There are also several sizes of additional pieces available, generaly they are made from aluminium but steel is also an option.

Details

Details

TypePressing force of Jaws (max)Tightening torgue (max)Socket Head Srew DIN 912DownloadsTechnical details
BK2-VT-T 22 kN43 NmM8x20
Technical details — BK2-VT-T

BK2-VT-T

Dimension drawing — BK2-VT-T
Jaw types
Additonal piece
A min
33 mm
A optimum
35 mm
A max
37 mm
B
29 mm
C
15 mm
D
21 mm
E
2.5 mm
G
7,5 mm
H
12 mm
K
21 mm
L
M5
G1 min
G1 opt
G1 max
Socket Head Srew DIN 912
M8x20
Pressing force of Jaws (max)
22 kN
Tightening torgue (max)
43 Nm
Weight approx.
60 g
Hardness of Jaws X
30-34 HRC
Hardness of Jaws Y
Dimensions
PDF drawings
STEP (3D)
STEP (3D)
DK2-VT-T 55 kN145 NmM12x30
Technical details — DK2-VT-T

DK2-VT-T

Dimension drawing — DK2-VT-T
Jaw types
Additonal piece
A min
46 mm
A optimum
49 mm
A max
53 mm
B
41 mm
C
22 mm
D
30 mm
E
4 mm
G
11 mm
H
18 mm
K
28 mm
L
M5
G1 min
G1 opt
G1 max
Socket Head Srew DIN 912
M12x30
Pressing force of Jaws (max)
55 kN
Tightening torgue (max)
145 Nm
Weight approx.
200 g
Hardness of Jaws X
30-34 HRC
Hardness of Jaws Y
Dimensions
PDF drawings
STEP (3D)
STEP (3D)
DK2-VTI-T 55 kN145 Nm1/2-1 1/4
Technical details — DK2-VTI-T

DK2-VTI-T

Dimension drawing — DK2-VTI-T
Jaw types
Additonal piece
A min
1,81 inch
A optimum
1,92 inch
A max
2,08 inch
B
1,61 inch
C
0,86 inch
D
1,18 inch
E
0,15 inch
G
0,43 inch
H
0,7 inch
K
1,1 inch
L
M5
G1 min
G1 opt
G1 max
Socket Head Srew DIN 912
1/2-1 1/4
Pressing force of Jaws (max)
55 kN
Tightening torgue (max)
145 Nm
Weight approx.
7,05 oz
Hardness of Jaws X
30-34 HRC
Hardness of Jaws Y
Dimensions
PDF drawings
STEP (3D)
STEP (3D)
FK2-VT-T 100 kN360 NmM16x40
Technical details — FK2-VT-T

FK2-VT-T

Dimension drawing — FK2-VT-T
Jaw types
Additonal piece
A min
61 mm
A optimum
65 mm
A max
69 mm
B
56 mm
C
29 mm
D
42 mm
E
5 mm
G
14,5 mm
H
26 mm
K
40 mm
L
M5
G1 min
G1 opt
G1 max
Socket Head Srew DIN 912
M16x40
Pressing force of Jaws (max)
100 kN
Tightening torgue (max)
360 Nm
Weight approx.
480 g
Hardness of Jaws X
30-34 HRC
Hardness of Jaws Y
Dimensions
PDF drawings
STEP (3D)
STEP (3D)
BK2-VT-TS 22 kN43 NmM8x20
Technical details — BK2-VT-TS

BK2-VT-TS

Dimension drawing — BK2-VT-TS
Jaw types
Additonal piece/ Smooth
A min
30 mm
A optimum
32 mm
A max
34 mm
B
29 mm
C
15 mm
D
21 mm
E
2.5 mm
G
7,5 mm
H
12 mm
K
21 mm
L
M5
G1 min
16,5 mm
G1 opt
17,5 mm
G1 max
18,5 mm
Socket Head Srew DIN 912
M8x20
Pressing force of Jaws (max)
22 kN
Tightening torgue (max)
43 Nm
Weight approx.
62 g
Hardness of Jaws X
30-34 HRC
Hardness of Jaws Y
48-52 HRC
Dimensions
PDF drawings
STEP (3D)
STEP (3D)

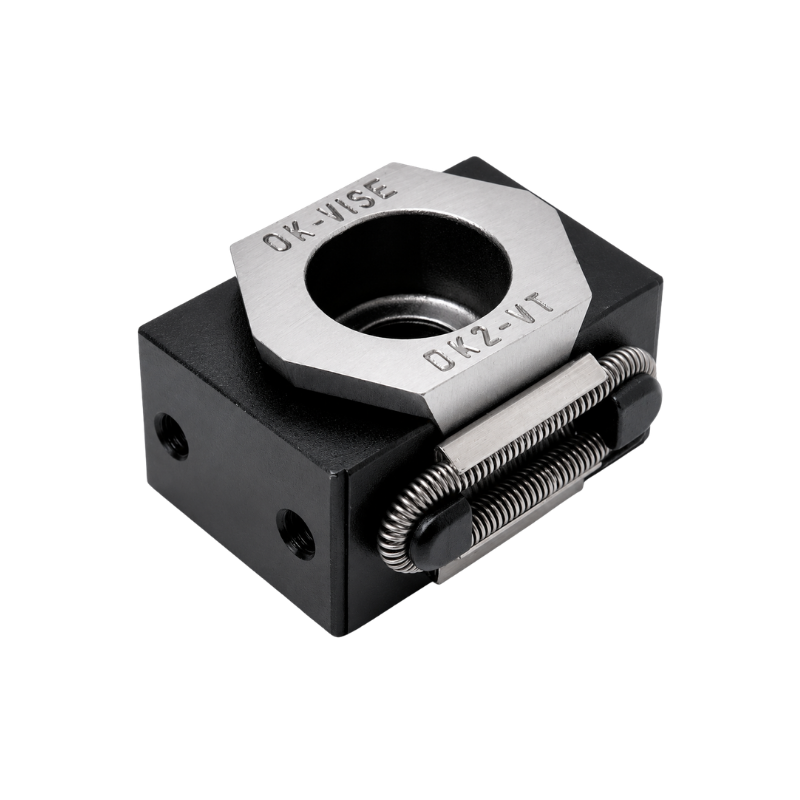

DK2-VT-TS 55 kN145 NmM12x30
Technical details — DK2-VT-TS

DK2-VT-TS

Dimension drawing — DK2-VT-TS
Jaw types
Additonal piece/ Smooth
A min
44 mm
A optimum
47 mm
A max
51 mm
B
41 mm
C
22 mm
D
30 mm
E
4 mm
G
11 mm
H
18 mm
K
28 mm
L
M5
G1 min
23 mm
G1 opt
24,5 mm
G1 max
26,5 mm
Socket Head Srew DIN 912
M12x30
Pressing force of Jaws (max)
55 kN
Tightening torgue (max)
145 Nm
Weight approx.
192 g
Hardness of Jaws X
30-34 HRC
Hardness of Jaws Y
48-52 HRC
Dimensions
PDF drawings
STEP (3D)
STEP (3D)
DK2-VTI-TS 55 kN145 Nm1/2-1 1/4
Technical details — DK2-VTI-TS

DK2-VTI-TS

Dimension drawing — DK2-VTI-TS
Jaw types
Additonal piece/ Smooth
A min
1,73 inch
A optimum
1,85 inch
A max
2,00 inch
B
1,61 inch
C
0,86 inch
D
1,18 inch
E
0,15 inch
G
0,43 inch
H
0,7 inch
K
1,1 inch
L
M5
G1 min
0,90 inch
G1 opt
0,96 inch
G1 max
1,05 inch
Socket Head Srew DIN 912
1/2-1 1/4
Pressing force of Jaws (max)
55 kN
Tightening torgue (max)
145 Nm
Weight approx.
6,8 oz
Hardness of Jaws X
30-34 HRC
Hardness of Jaws Y
48-52 HRC
Dimensions
PDF drawings
STEP (3D)
STEP (3D)
FK2-VT-TS 100 kN360 NmM16x40
Technical details — FK2-VT-TS

FK2-VT-TS

Dimension drawing — FK2-VT-TS
Jaw types
Additonal piece/ Smooth
A min
59 mm
A optimum
63 mm
A max
67 mm
B
56 mm
C
29 mm
D
42 mm
E
5 mm
G
14,5 mm
H
26 mm
K
40 mm
L
M5
G1 min
30,5 mm
G1 opt
32,5 mm
G1 max
35 mm
Socket Head Srew DIN 912
M16x40
Pressing force of Jaws (max)
100 kN
Tightening torgue (max)
360 Nm
Weight approx.
475 g
Hardness of Jaws X
30-34 HRC
Hardness of Jaws Y
48-52 HRC
Dimensions
PDF drawings
STEP (3D)
STEP (3D)

Additional information

M5 thread lenghts:

  • B-size clamp = 4mm
  • D- and F-size clamps = 7mm
