Machinable model

workholding with machinable jaws for complicated workpiece shapes ok-vise.

When you need to have a customized jaw that fits exactly to your workpiece we recommend our machinable jaw model.

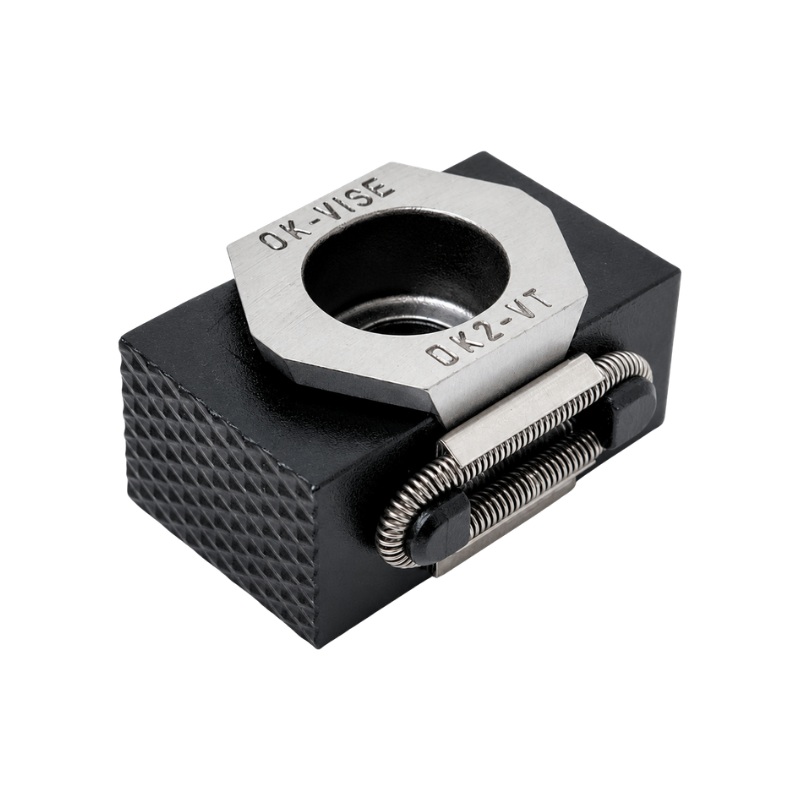

These clamps are available with extended jaws and can be machined to suit the geometry of the workpiece. The smallest model can be machined up to 3 mm and the larger ones up to 5 mm:

B-size clamp = 3 mm
D- and F-size clamps = 5 mm

One popular variation of these is a model with one machinable jaw. Then the other jaw is typically smooth ( +3S, +5S )

Technical information Find a distributor

Details

Type	Pressing force of Jaws	Tightening torgue	Socket Head Srew DIN 912	Downloads
BK2-VT+3	22 kN	43 Nm	M8x20	Dimensions STEP
Technical details — BK2-VT+3 BK2-VT+3 Jaw types Machinable A min 33 mm A optimum 35 mm A max 37 mm B 29 mm C 15 mm D 21 mm E 2.5 mm G min G opt G max Socket Head Srew DIN 912 M8x20 Pressing force of Jaws 22 kN Tightening torgue 43 Nm Weight approx. 70 g Hardness of Jaws X 30-34 HRC Hardness of Jaws Y Dimensions PDF drawings STEP (3D) STEP (3D)
DK2-VT+5	55 kN	145 Nm	M12x30	Dimensions STEP
Technical details — DK2-VT+5 DK2-VT+5 Jaw types Machinable A min 52 mm A optimum 55 mm A max 59 mm B 41 mm C 22 mm D 30 mm E 4 mm G min G opt G max Socket Head Srew DIN 912 M12x30 Pressing force of Jaws 55 kN Tightening torgue 145 Nm Weight approx. 235 g Hardness of Jaws X 30-34 HRC Hardness of Jaws Y Dimensions PDF drawings STEP (3D) STEP (3D)
FK2-VT+5	100 kN	360 Nm	M16x40	Dimensions STEP
Technical details — FK2-VT+5 FK2-VT+5 Jaw types Machinable A min 67 mm A optimum 70 mm A max 75 mm B 56 mm C 29 mm D 42 mm E 5 mm G min G opt G max Socket Head Srew DIN 912 M16x40 Pressing force of Jaws 100 kN Tightening torgue 360 Nm Weight approx. 550 g Hardness of Jaws X 30-34 HRC Hardness of Jaws Y Dimensions PDF drawings STEP (3D) STEP (3D)
BK2-VT+3S	22 kN	43 Nm	M8x20	Dimensions STEP
Technical details — BK2-VT+3S BK2-VT+3S Jaw types Machinable/ Smooth A min 30 mm A optimum 32 mm A max 34 mm B 29 mm C 15 mm D 21 mm E 2.5 mm G min 16,5 mm G opt 17,5 mm G max 18,5 mm Socket Head Srew DIN 912 M8x20 Pressing force of Jaws 22 kN Tightening torgue 43 Nm Weight approx. 65 g Hardness of Jaws X 30-34 HRC Hardness of Jaws Y 48-52 HRC Dimensions PDF drawings STEP (3D) STEP (3D)
DK2-VT+5S	55 kN	145 Nm	M12x30	Dimensions STEP
Technical details — DK2-VT+5S DK2-VT+5S Jaw types Machinable/ Smooth A min 47 mm A optimum 50 mm A max 54 mm B 41 mm C 22 mm D 30 mm E 4 mm G min 26 mm G opt 27,5 mm G max 29,5 mm Socket Head Srew DIN 912 M12x30 Pressing force of Jaws 55 kN Tightening torgue 145 Nm Weight approx. 210 g Hardness of Jaws X 30-34 HRC Hardness of Jaws Y 48-52 HRC Dimensions PDF drawings STEP (3D) STEP (3D)
DK2-VTI+5S (inch model)	55 kN	145 Nm	1/2-1 1/4	Dimensions STEP
Technical details — DK2-VTI+5S (inch model) DK2-VTI+5S (inch model) Jaw types Machinable/ Smooth A min 1,85 in A optimum 1,97 in A max 2,12 in B 1,61 in C 0,86 in D 1,18 in E 0,15 in G min 1,00 in G opt 1,08 in G max 1,16 in Socket Head Srew DIN 912 1/2-1 1/4 Pressing force of Jaws 55 kN Tightening torgue 145 Nm Weight approx. 210 oz Hardness of Jaws X 30-34 HRC Hardness of Jaws Y 48-52 HRC Dimensions PDF drawings STEP (3D) STEP (3D)
FK2-VT+5S	100 kN	360 Nm	M16x40	Dimensions STEP
Technical details — FK2-VT+5S FK2-VT+5S Jaw types Machinable/ Smooth A min 62 mm A optimum 65 mm A max 70 mm B 56 mm C 29 mm D 42 mm E 5 mm G min 33,5 mm G opt 35 mm G max 37,5 mm Socket Head Srew DIN 912 M16x40 Pressing force of Jaws 100 kN Tightening torgue 360 Nm Weight approx. 500 g Hardness of Jaws X 30-34 HRC Hardness of Jaws Y 48-52 HRC Dimensions PDF drawings STEP (3D) STEP (3D)
