Single Directional Grid System Clamp Module flexible
GCS-DR3, GCS-DS3
Workholding Clamps and Fixturing Solutions
What is Grid System and how does it work?

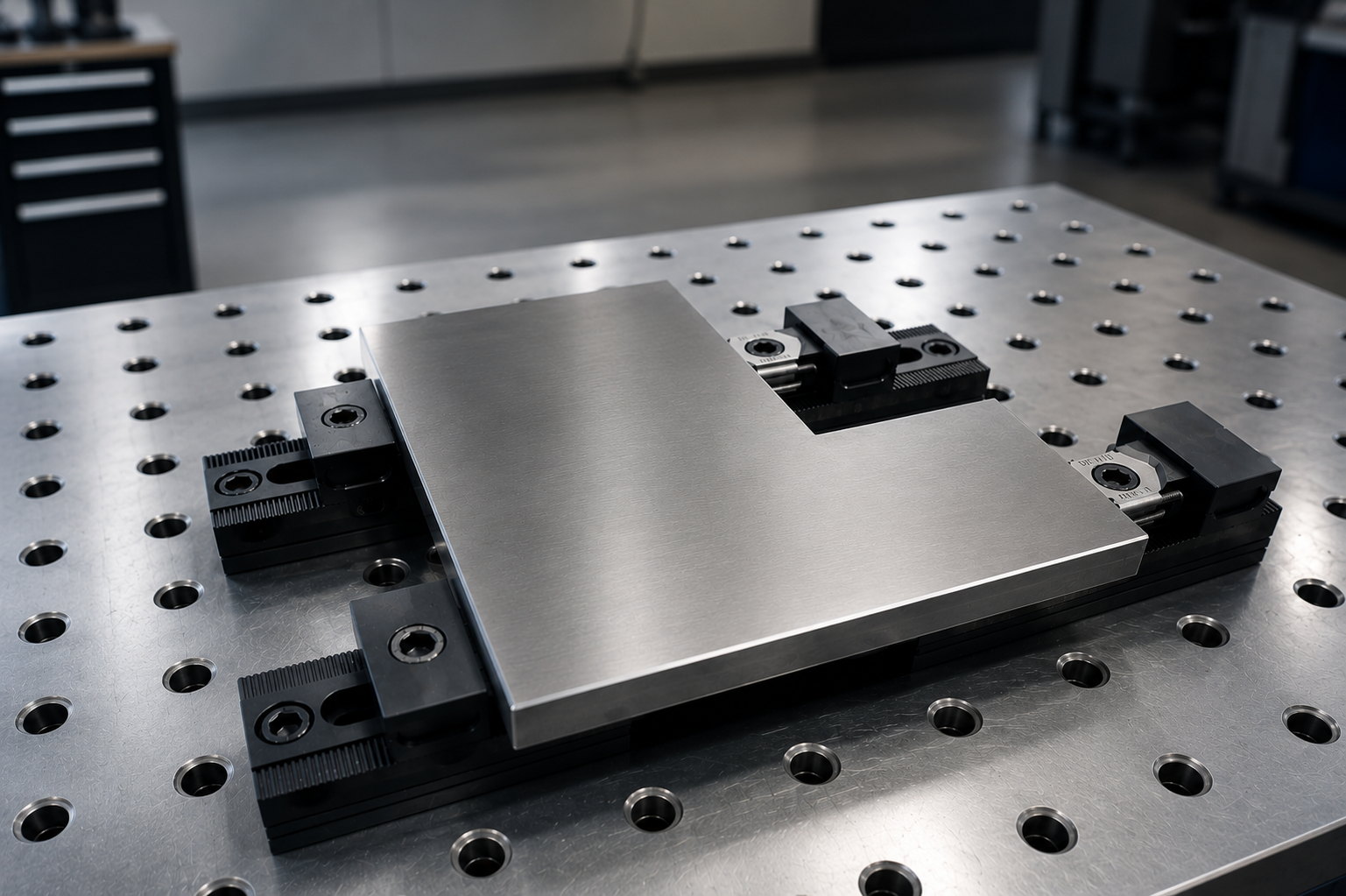

The OK-VISE Grid System is a modular workholding solution designed for fast and flexible single-part setups. The system is based on a grid layout that allows clamping modules and support elements to be positioned freely according to the workpiece size and shape.

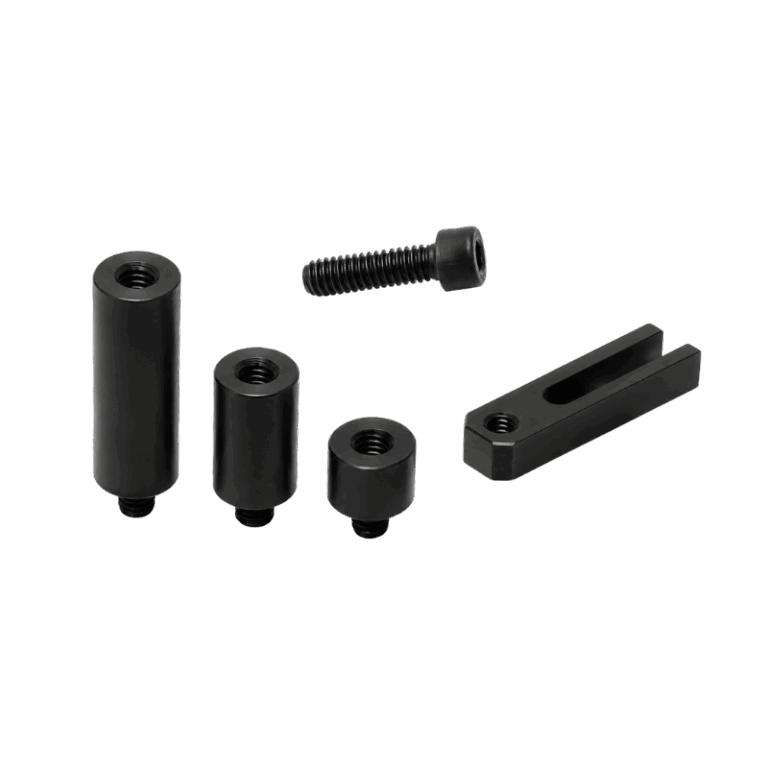

It includes a range of modules such as clamp modules, stopper modules, side guides, and parallels, which can be combined to create different clamping configurations. The low-profile design enables efficient use of the machining area while maintaining stable and repeatable setups.
Details
Key Features
- Modular system with clamps, stoppers, side guides, and parallels
- Low profile structure (25 mm)
- Flexible positioning based on grid layout
- Also suitable for T-slot platforms
- Quick setup changes
Benefits
- Fast setup and repositioning of modules
- Good clamping stroke for varying workpiece sizes
- Efficient use of the machining area due to low height
- Adaptable to different part geometries without dedicated fixtures
Applications
- Flexible clamping of single / two parts and small batches
- Larger individual workpieces
- Plates
- Horizontal machining centers where workspace is limited
Grid System modules

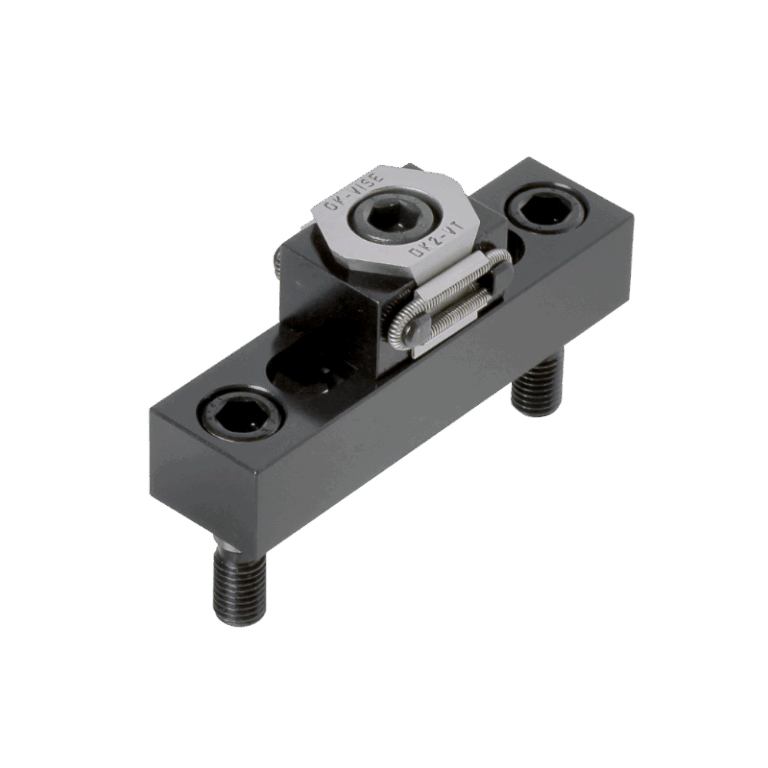

Dual Directional Grid System Clamp Module
GCD-DR1, GCD-DS1, GCD-DT1

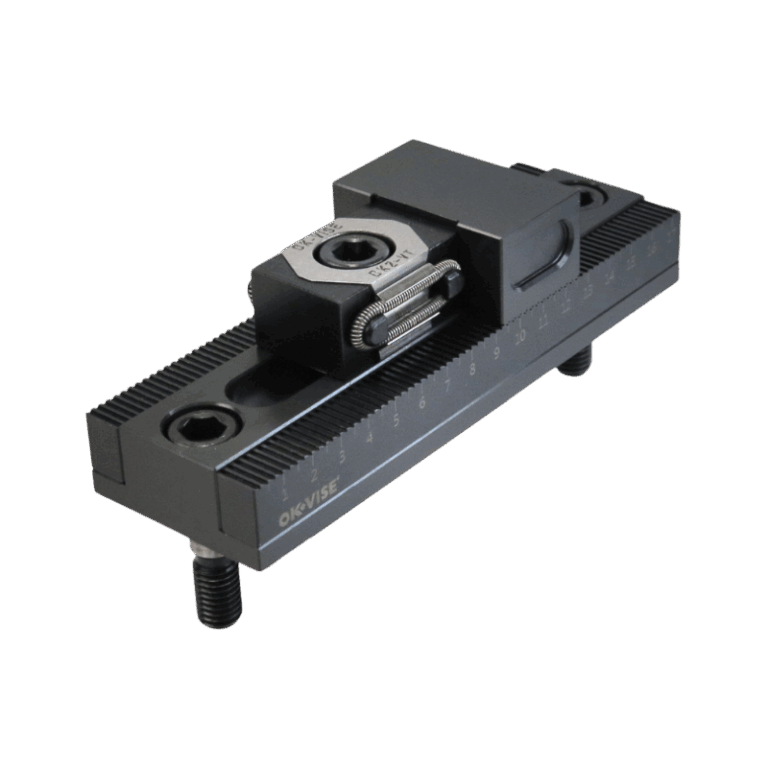

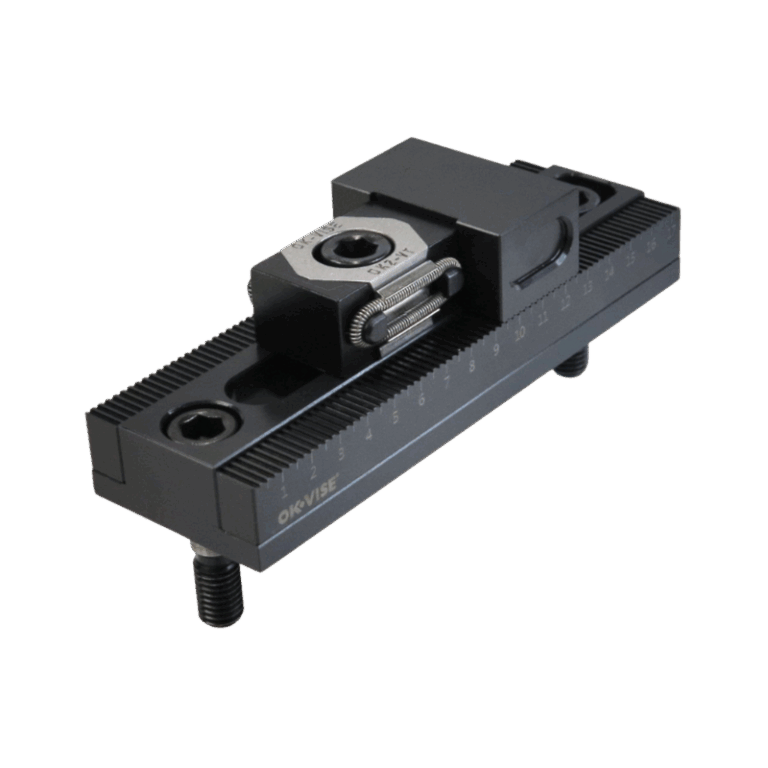

Single Directional Grid System Clamp Module
GCS-DR1, GCS-DR2, GCS-DS1, GCS-DS2

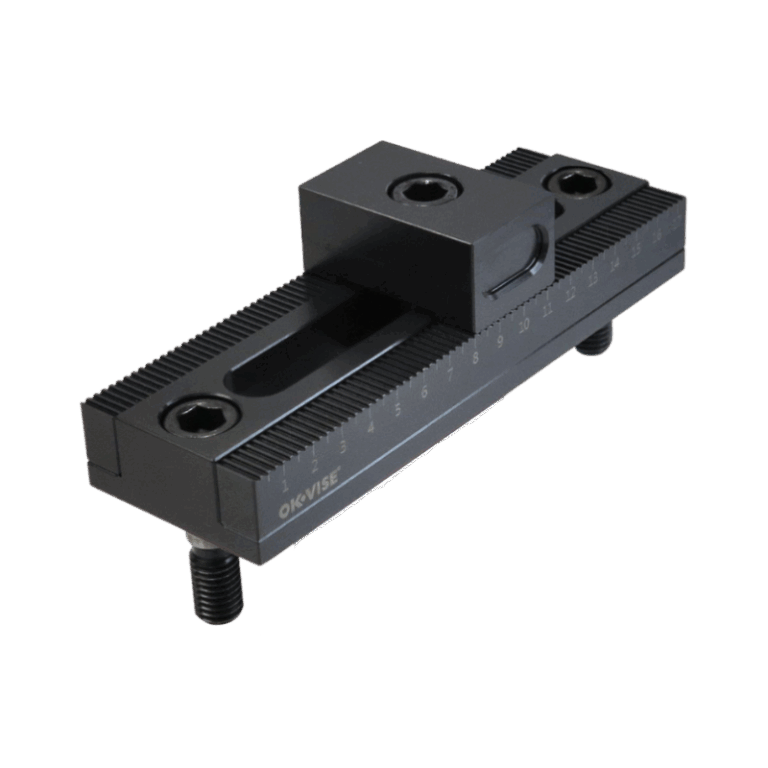

RL Grid Adjustable Stop Module
GS-SA1, GS-SA2

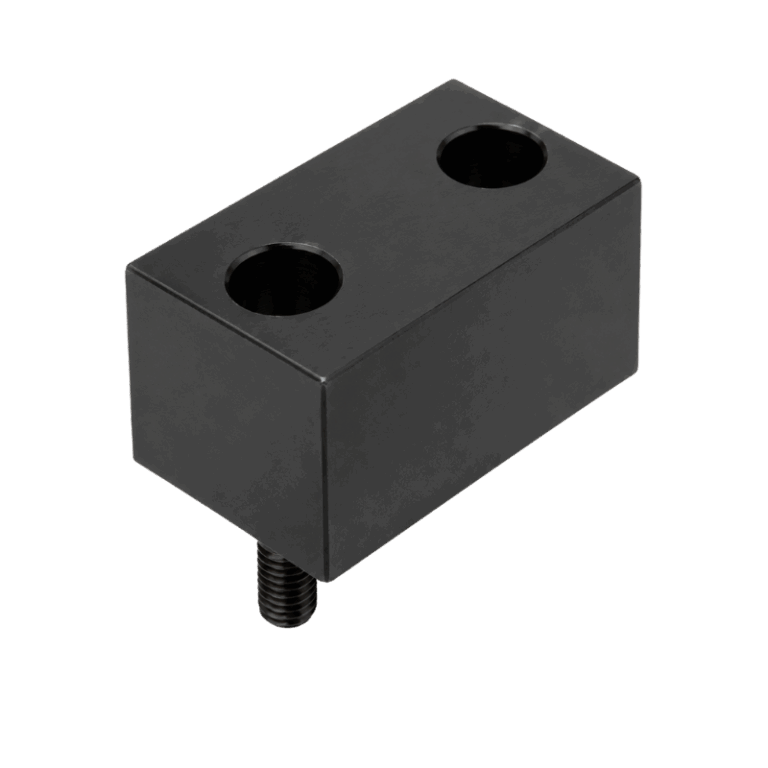

Fixed Stop Module
GS-SF1, GS-SF2
