Grid System riser GP-1
Description

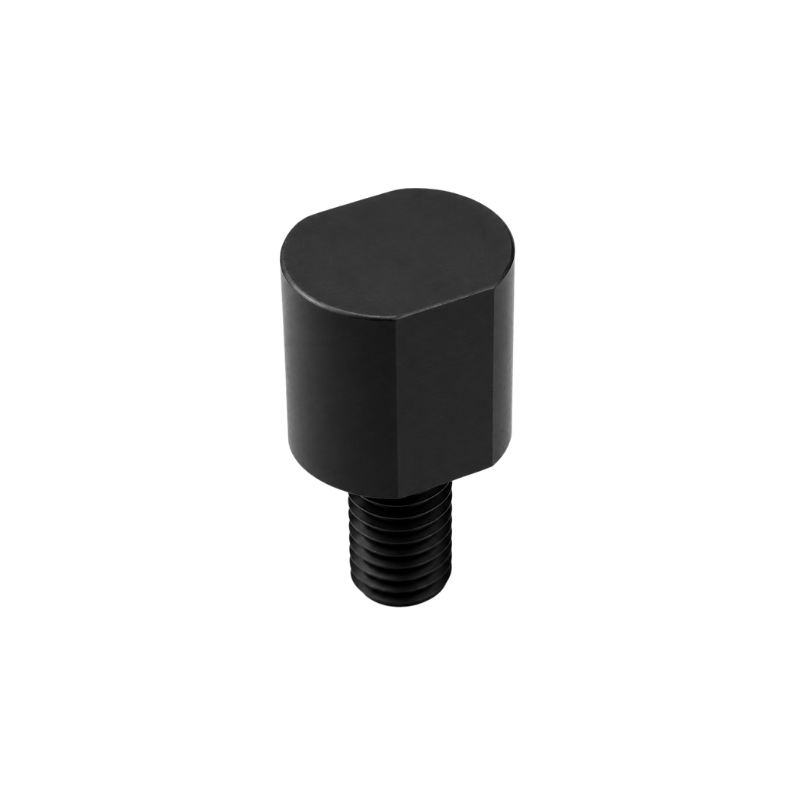

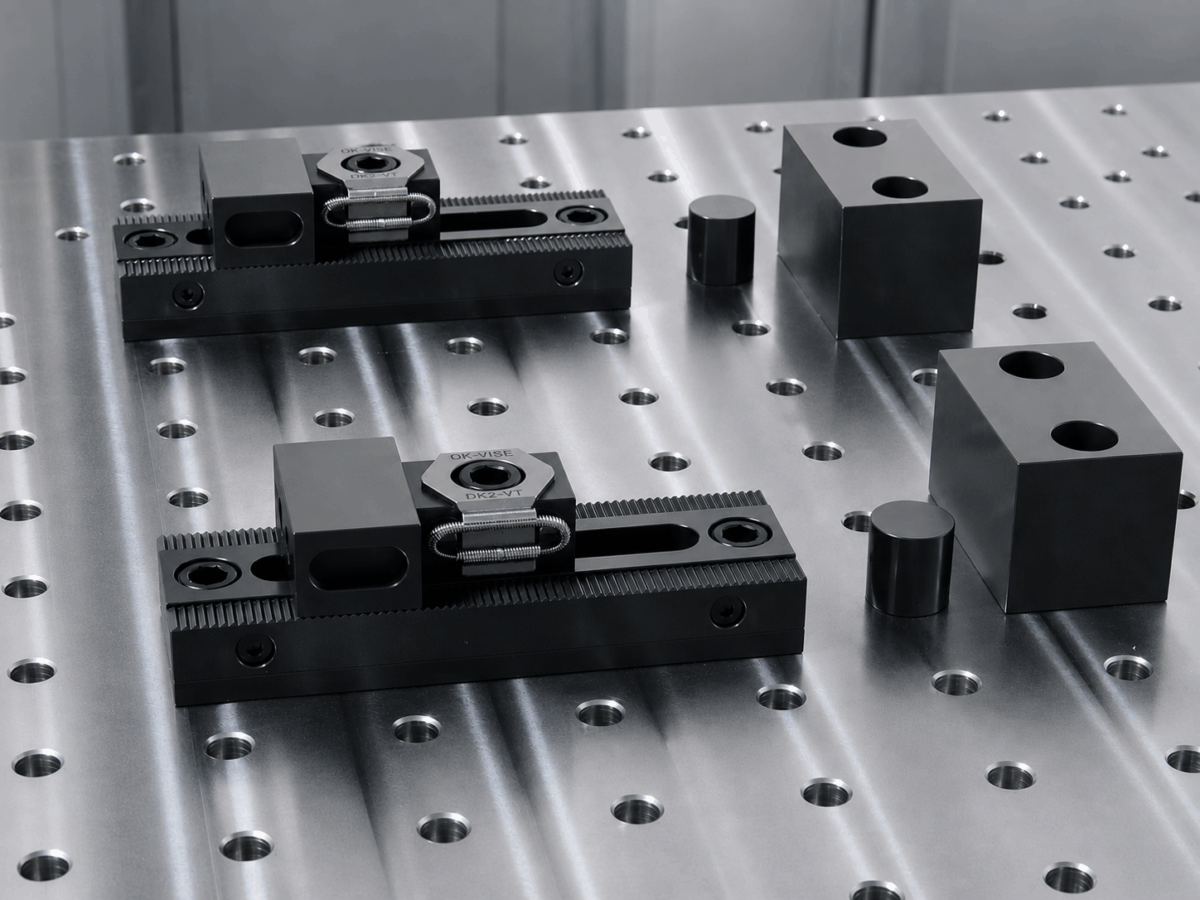

Grid System Riser GP-1 is a riser block designed for the OK-VISE Grid System. It is used to raise the workpiece above the grid platform, providing improved access for machining and through-hole drilling operations.
The module features an M12 thread, allowing direct installation onto the grid platform. It can be positioned freely at different locations according to the setup requirements.
Technical data
- M12 mounting thread
- Height: 25 mm
- Adjustable positioning on the grid platform
Details
| Type | Weight in g approx. | Dimensions | STEP (3D) |
| GP-1 | 110 |  |
 |
