OK-VISE®

Workholding Clamps and Fixturing Solutions

  • Different jaw options
  • Low-Profile Clamps

V-slot crossed model

This model is ideal for clamping rods, pins and disks.

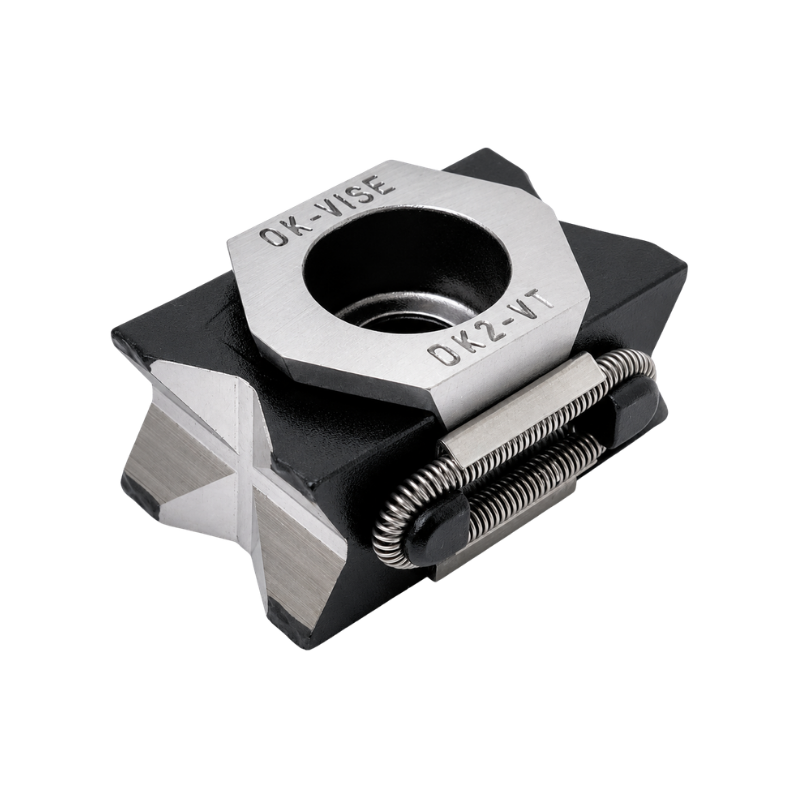

Low-profile clamps with cross V-slot are used for machining of the cylindrical workpieces.

The clamps enable workpieces to be placed in both the horizontal and vertical planes.

Please note: Combo-models with one smooth- and one V-slot jaw are available.

Details

Type A min A optimum A max B C D E N Socket Head Srew DIN 912 Pressing force of Jaws (max), kN Tightening torgue (max), Nm Weight in g (*oz) approx. Hardness of Jaws HRC Dimensions STEP (3D)
BK2-VT-C 33 35 37 29 15 21 2.5 3 M8x20 25 43 70 30-34
DK2-VT-C
 52 55
 59 41 22 30 4 5 M12x30 55 145 235 30-34
DK2-VTI-C  (inch model) 2,04 2,16
 2,31 1,61 0,86 1,18 0,15 0,20 1/2-1 1/4 55 145 8,28* 30-34 (File not found)
FK2-VT-C
 67 70
 75 56 29 42 5 5 M16x40 100 360 550 30-34
