Serrated model

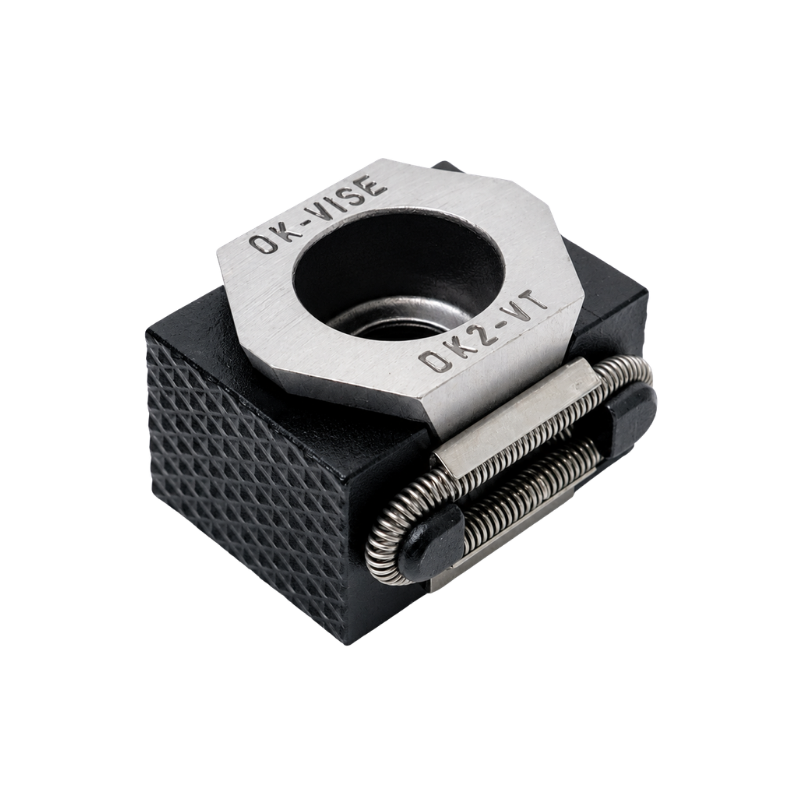

standard serrated ok-vise workholding clamp.

A low-profile wedge clamp with serrated jaws for secure workholding during milling. The serrations increase grip on the workpiece and are suitable when contact marks are acceptable. Available in B-, D- and F-size versions.

Technical information Find a distributor

Details

Type	Pressing force of Jaws (max)	Tightening torgue (max)	Socket Head Srew DIN 912	Downloads
BK2-VT	25 kN	44 Nm	M8x20	Dimensions STEP
Technical details — BK2-VT BK2-VT A min 27 mm A optimum 29 mm A max 31 mm B 29 mm C 15 mm D 21 mm E 2.5 mm Socket Head Srew DIN 912 M8x20 Pressing force of Jaws (max) 25 kN Tightening torgue (max) 44 Nm Weight 55 g Hardness of Jaws 48-52 HRC Dimensions PDF drawings STEP (3D) STEP (3D)
DK2-VT	65 kN	145 Nm	M12x30	Dimensions STEP
Technical details — DK2-VT DK2-VT A min 42 mm A optimum 45 mm A max 49 mm B 41 mm C 22 mm D 30 mm E 4 mm Socket Head Srew DIN 912 M12x30 Pressing force of Jaws (max) 65 kN Tightening torgue (max) 145 Nm Weight 180 g Hardness of Jaws 48-52 HRC Dimensions PDF drawings STEP (3D) STEP (3D)
DK2-VTI	65 kN	145 Nm	1/2-1 1/4	Dimensions STEP
Technical details — DK2-VTI DK2-VTI A min 1,65 inch A optimum 1,77 inch A max 1,92 inch B 1,61 inch C 0,86 inch D 1,18 inch E 0,15 inch Socket Head Srew DIN 912 1/2-1 1/4 Pressing force of Jaws (max) 65 kN Tightening torgue (max) 145 Nm Weight 6,34 oz Hardness of Jaws 48-52 HRC Dimensions PDF drawings STEP (3D) STEP (3D)
FK2-VT	110 kN	360 Nm	M16x40	Dimensions STEP
Technical details — FK2-VT FK2-VT A min 57 mm A optimum 61 mm A max 65 mm B 56 mm C 29 mm D 42 mm E 5 mm Socket Head Srew DIN 912 M16x40 Pressing force of Jaws (max) 110 kN Tightening torgue (max) 360 Nm Weight 465 g Hardness of Jaws 48-52 HRC Dimensions PDF drawings STEP (3D) STEP (3D)

Additional information

The wedge mechanism moves the jaws outward as the central bolt is tightened. The B-, D- and F-series use different bolt sizes and tightening torques; refer to the technical table.
