Clamp Modules B-Series

Please note: The product options below are the most commonly used clamp modules. However, it is possible to order the clamp module with any combination of available jaws. You can explore more jaw options available from our low-profile clamps section.

Type	Jaw types	A min	A optimum	A max	Tightening torgue (max), Nm	Weight in g approx.	Inc. clamp	Inc. T-nut set	Dimensions	STEP (3D)

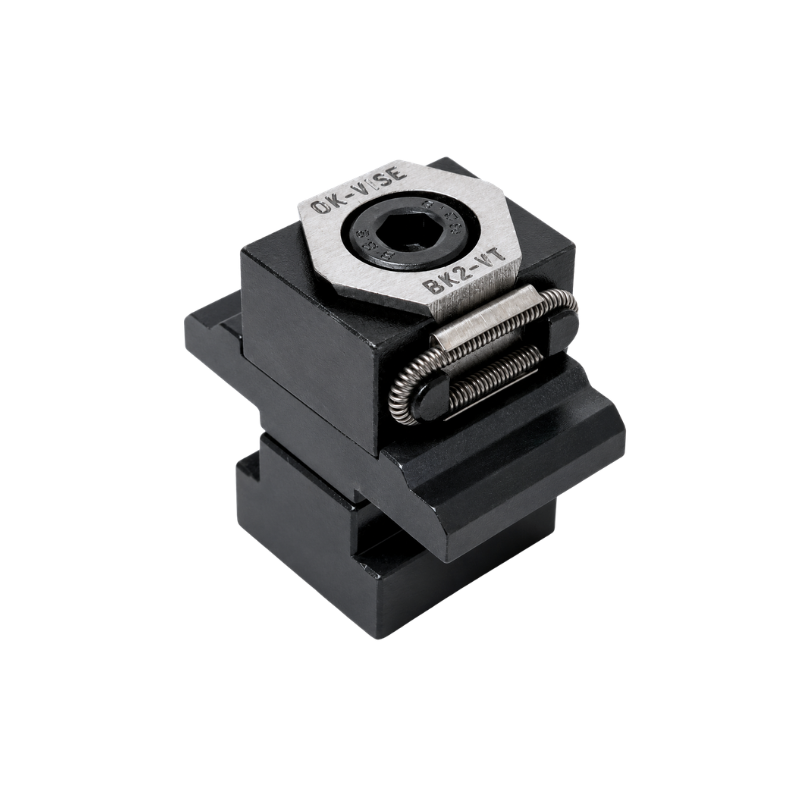

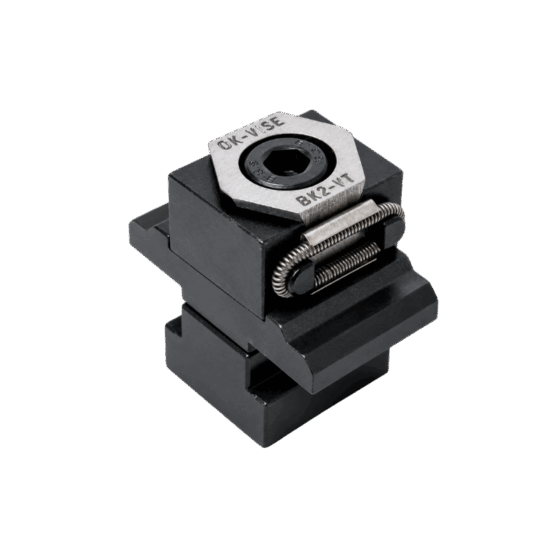

RMC-BS	Smooth	27	29	31	44	200	BK2-VT-S	RMA-BP1

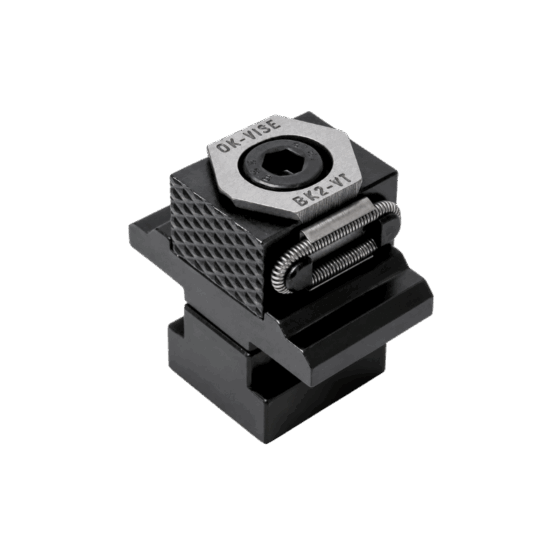

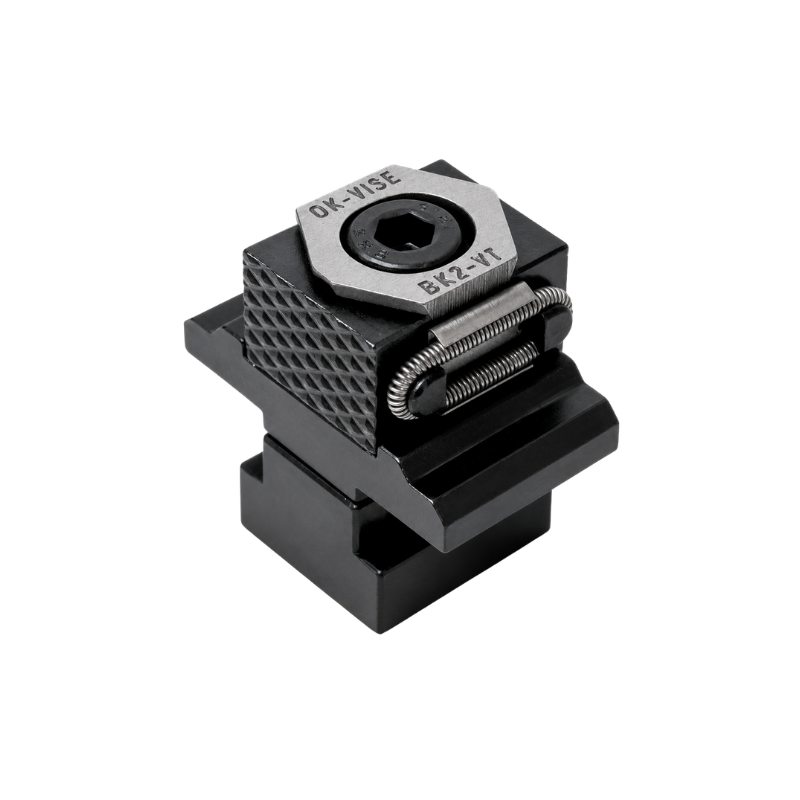

RMC-BR	Serrated	27	29	31	44	196	BK2-VT	RMA-BP1
RMC-BSR	Serrated/ Smooth	27	29	31	44	200	BK2-VT-SR	RMA-BP1

Jaw combinations:

All the jaw types, such as serrated (R), smooth (S), tungsten-carbide (D), additional piece models (T), grip models (G), self-aligning (B) and machinable (M) are available for the Multi-Rail RM system. If necessary, jaw types can also be combined so that one jaw is different from the other.

If you can´t find a suitable clamp module for your needs, take a look at our low-profile clamps and use adapter sets.

Couple of examples of RM systems clamp modules in size B are RMC-BR and RMC-BS, where the end of the code typically describes the type of the jaw – or jaws in case the jaws are diffrent
