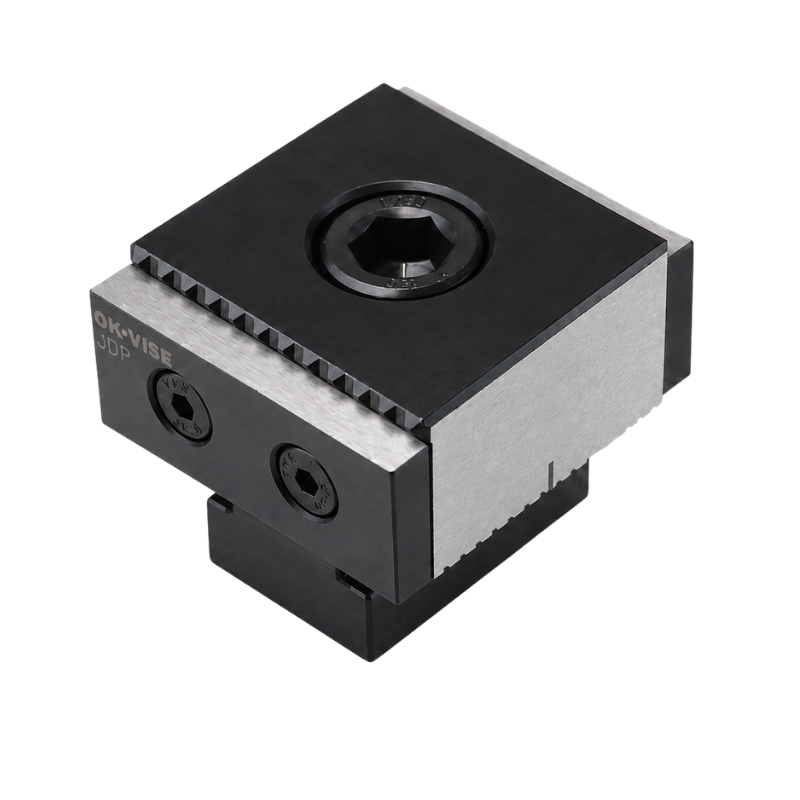

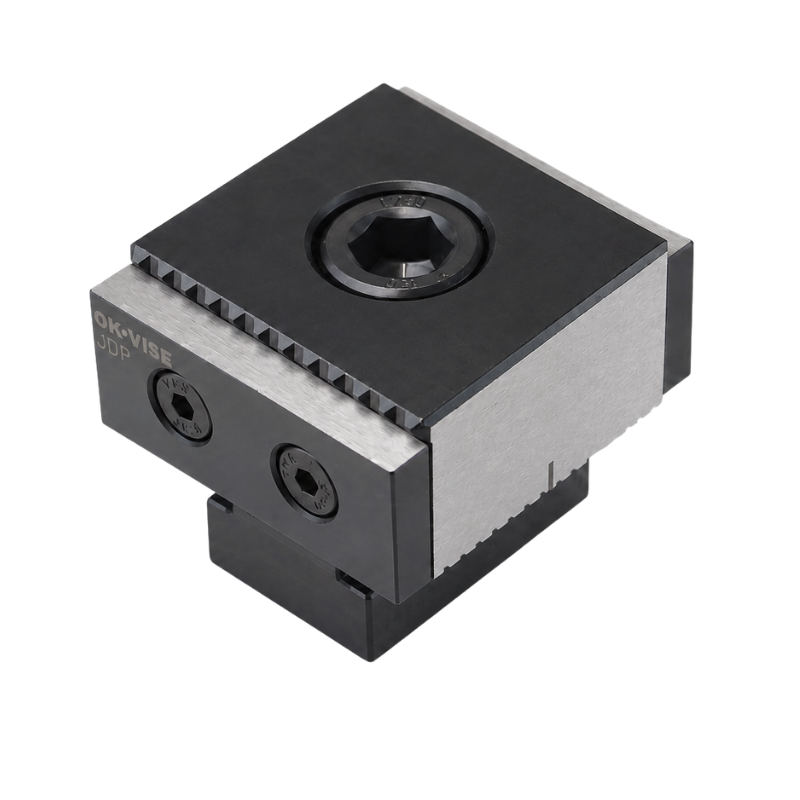

Knife edge grip stop module with parallel

The Knife Edge Grip Stop Module with Parallel combines an OK-VISE knife edge grip stop module with a precision parallel for raised workpiece positioning.

The parallel raises the workpiece 18.5 mm above the mounting surface, providing additional clearance for machining around the workpiece and for through-hole drilling. The parallel height is manufactured to an accuracy of ±0.01 mm.

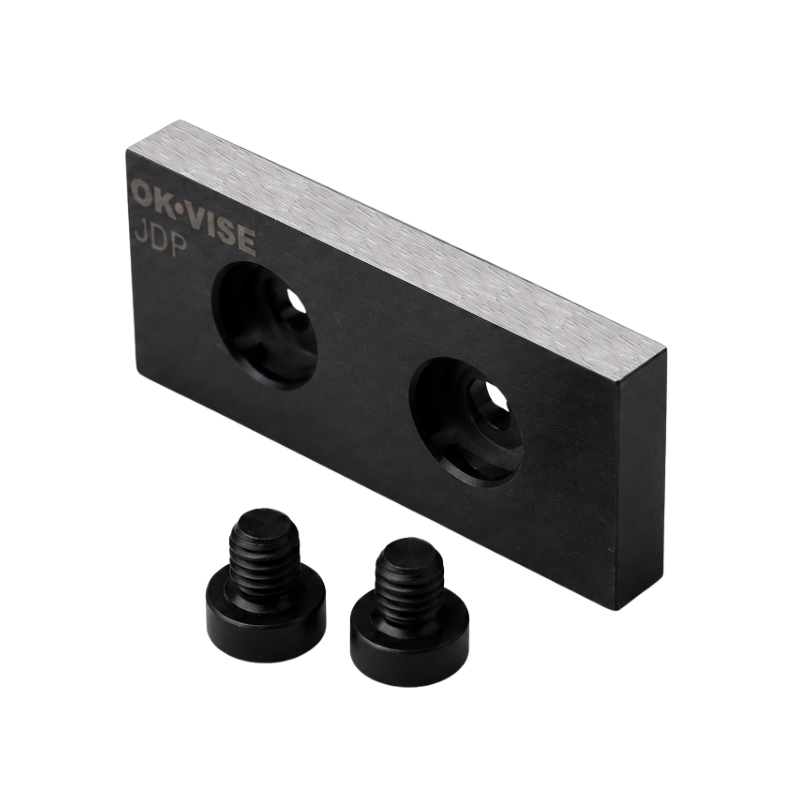

The set includes the stop module, parallel, and mounting screws required to attach the parallel to the stop module.

Technical data

• Workpiece height above mounting surface: 18.5 mm
• Parallel height accuracy: ±0.01 mm
• Knife edge grip stop module
• Parallel and mounting screws included

Applications

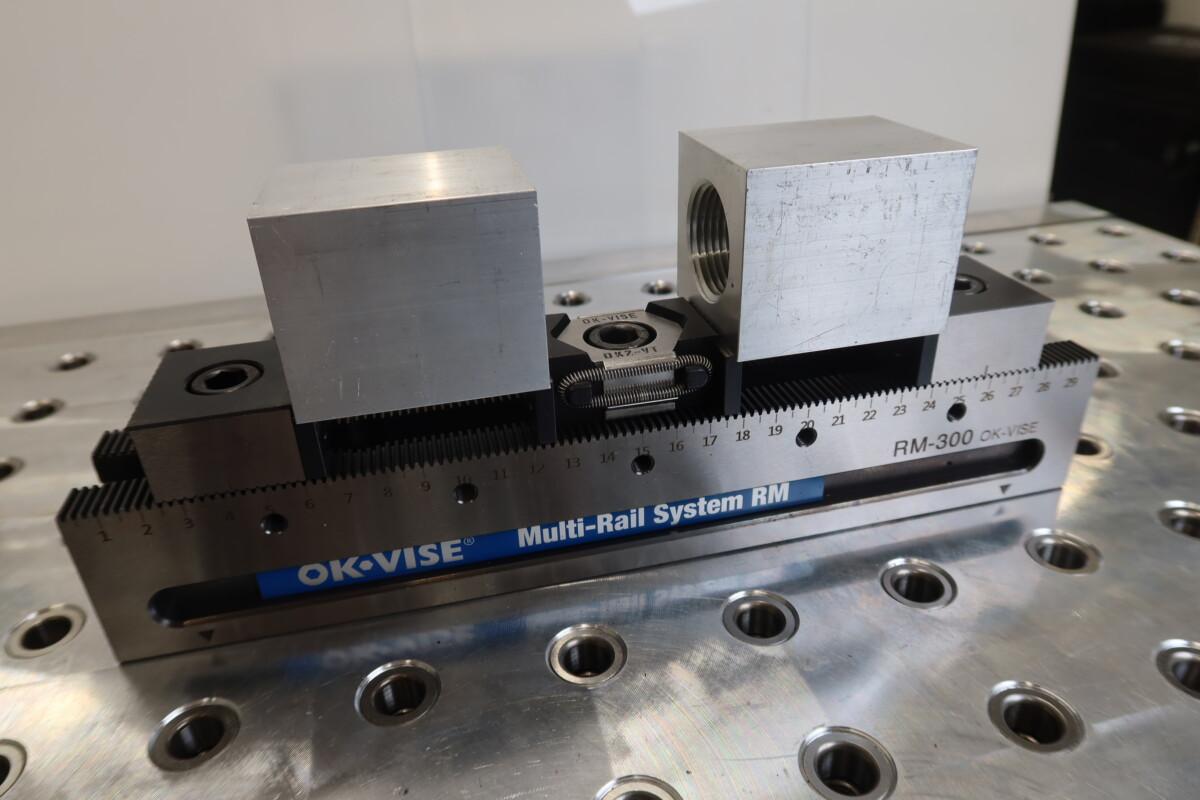

• Raised workpiece positioning
• Through-hole drilling
• Improved tool access around the workpiece
• Setups requiring additional clearance below the workpiece
