Knife edge grip model with parallel

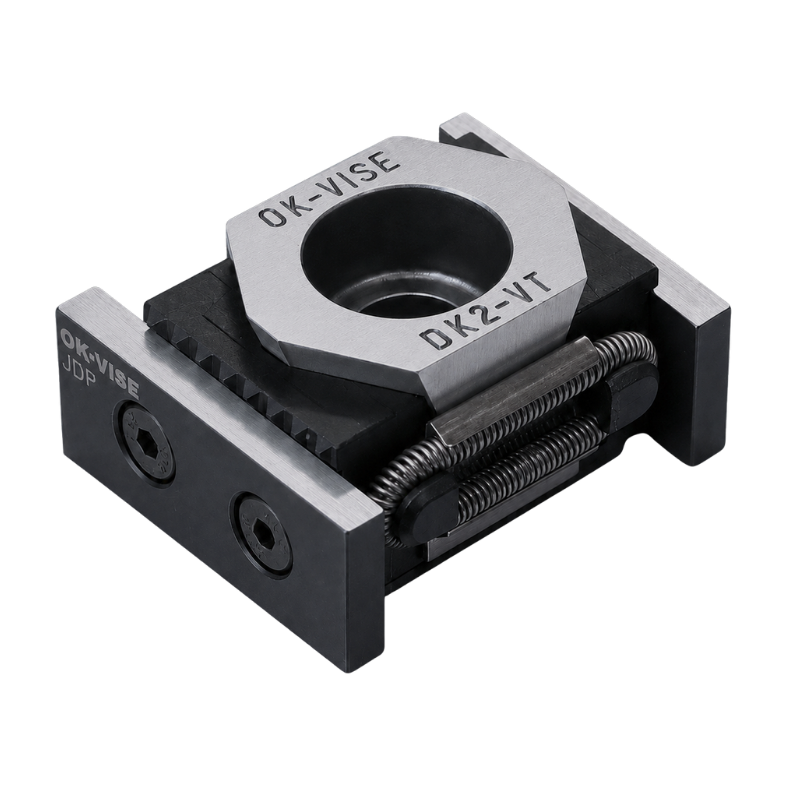

The Knife Edge Grip Model with Parallel combines an OK-VISE knife edge grip low-profile clamp with a precision parallel for raised workpiece clamping.

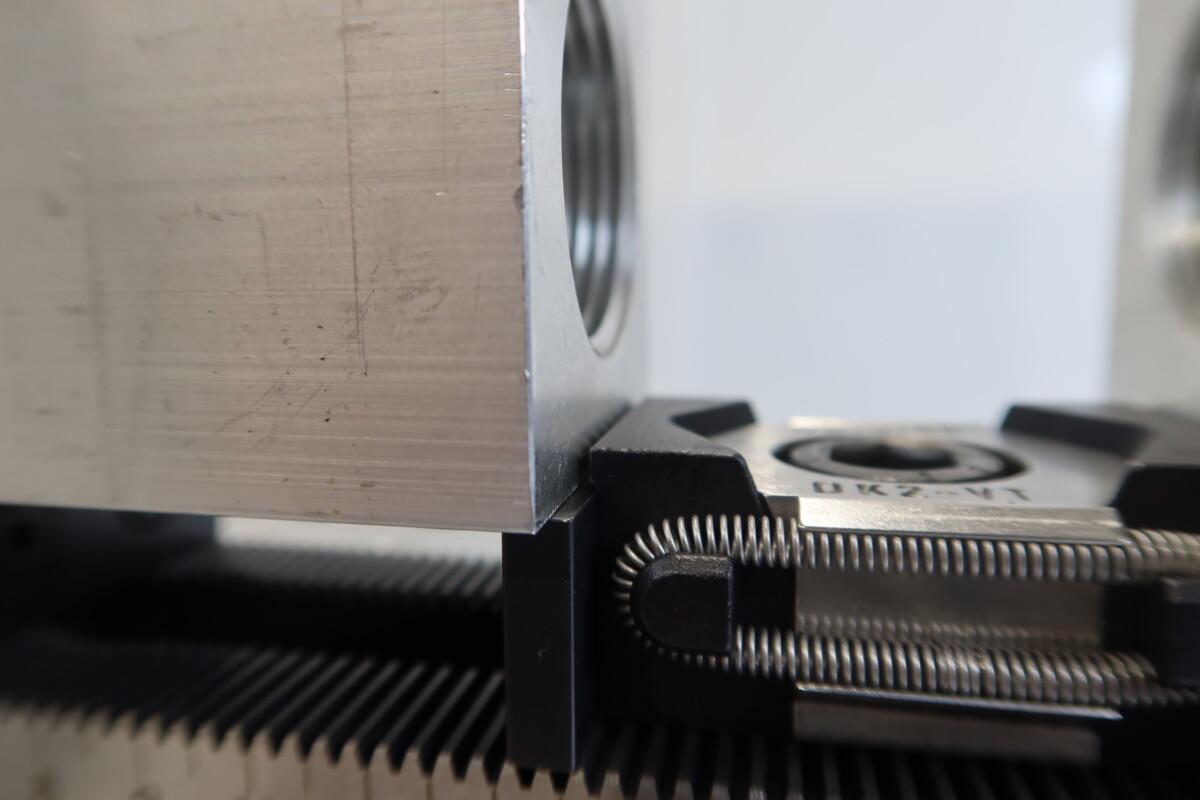

The parallel raises the workpiece 18.5 mm above the mounting surface, providing additional clearance for machining around the workpiece and for through-hole drilling. The parallel height is manufactured to an accuracy of ±0.01 mm.

The set includes the clamp, parallel, and mounting screws required to attach the parallel to the clamp.

Technical data

• Workpiece height above mounting surface: 18.5 mm
• Parallel height accuracy: ±0.01 mm
• Knife edge grip jaw
• Parallel and mounting screws included

Applications

• Setups requiring additional clearance below the workpiece
• Through-hole drilling
• Improved tool access around the workpiece
