Knife edge grip model
Image 1 of 2

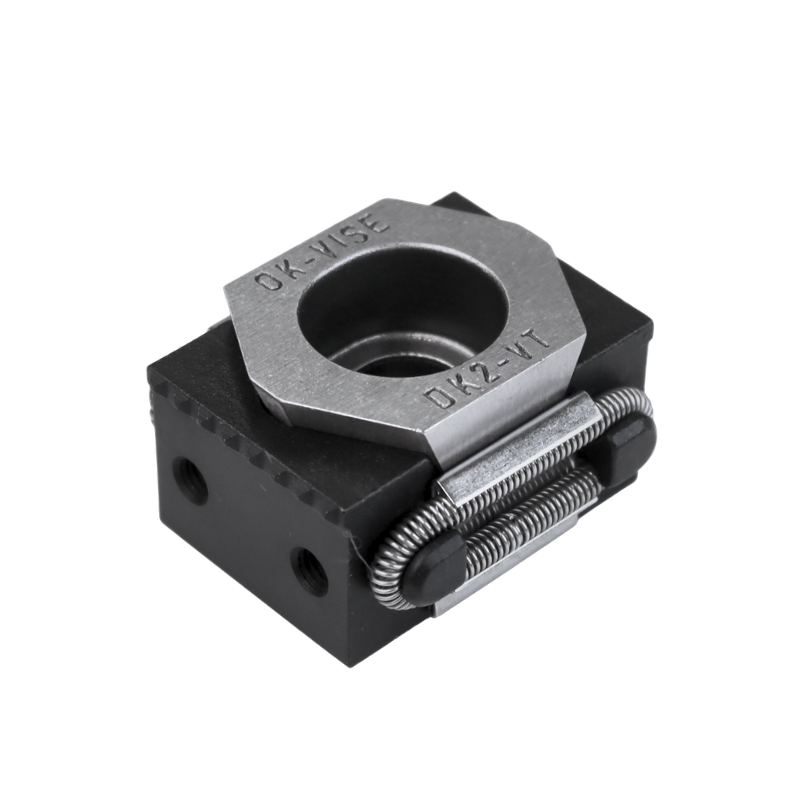

This low-profile clamp uses knife-edge jaws that press into the workpiece to create a strong mechanical grip. It is intended for machining where high resistance to movement is required and the jaw contact may leave marks. Versions with one knife-edge and one smooth jaw are available.

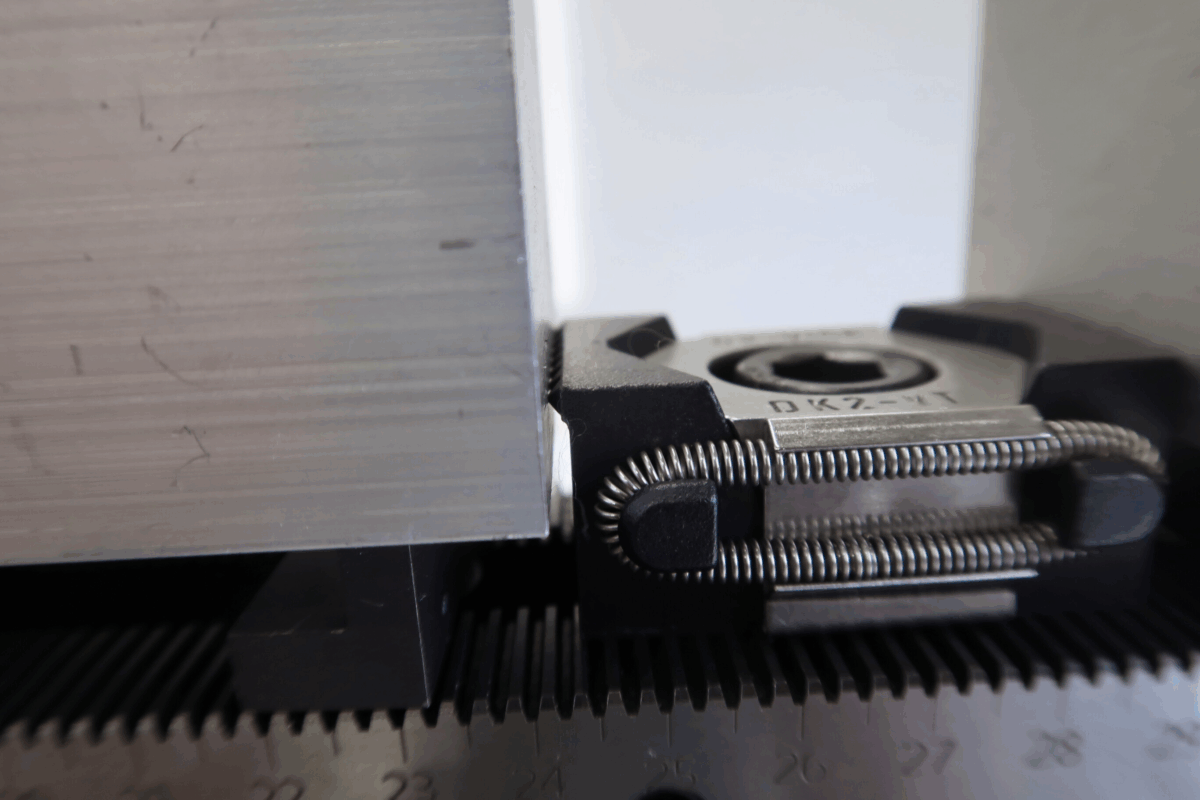

The knife edge engages the workpiece close to its lower edge, leaving more of the upper surface accessible for machining. The jaw sides include M5 threaded holes for attaching parallel supports.
Details
Details
| Type | Jaw types | Downloads | Technical details |
|---|---|---|---|
| BK2-VT-SG | Knife edge/ Smooth | ||
Technical details — BK2-VT-SGBK2-VT-SG
| |||
| BK2-VT-G |
Knife edge | ||
Technical details — BK2-VT-GBK2-VT-G
| |||
| DK2-VT-SG | Knife edge/ Smooth | ||
Technical details — DK2-VT-SGDK2-VT-SG
| |||
| DK2-VT-G |
Knife edge | ||
Technical details — DK2-VT-GDK2-VT-G
| |||
