Clamp Modules F-series

Clamp modules for Multi-Rail RH System are based on OK-VISE low-profile clamps, added with a bolt and T-Nut for the base rail.
The maximum clamping force of these clamp modules is typically 90 kN.

In addition to the serrated (R) and smooth (S) jaws there is also tungsten-carbide (D) available.

Also additional piece models (T), grip models (G), self-aligning (B) and machinable (M) are available for the Multi-Rail RH system on request.

Details

Please note: The product options below are the most commonly used clamp modules. However, it is possible to order the clamp module with any combination of available jaws. You can explore more jaw options available from our low-profile clamps section.

Type	Jaw type	A min	A optimum	A max	Weight approx. (g)	Inc. Clamp	Inc. T-nut set	Dimensions	STEP (3D)

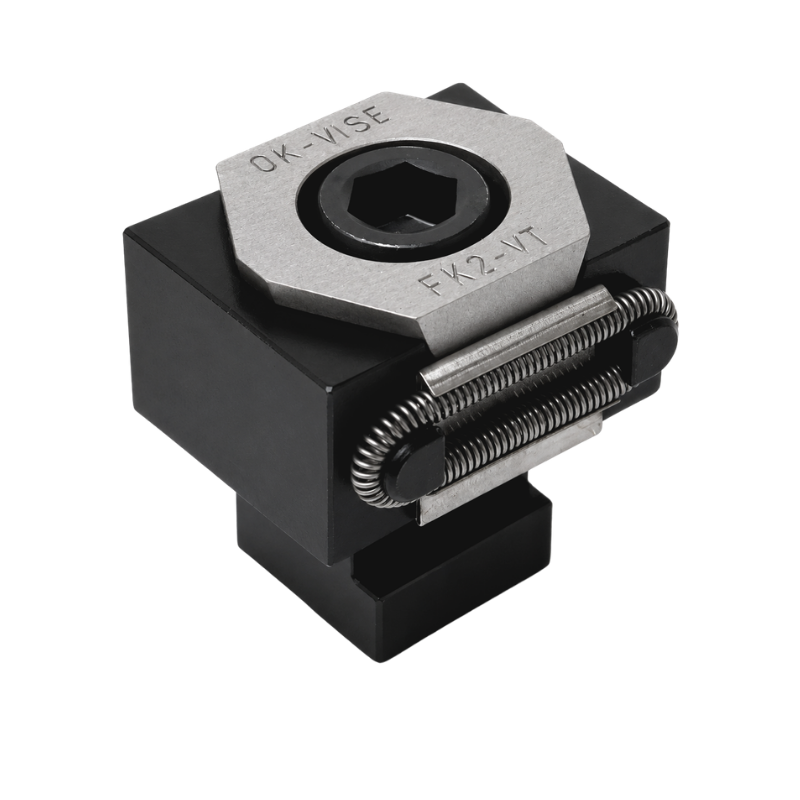

RHC-FS1	Smooth	57	60	64	660	FK2-VT-S	RHA-F1

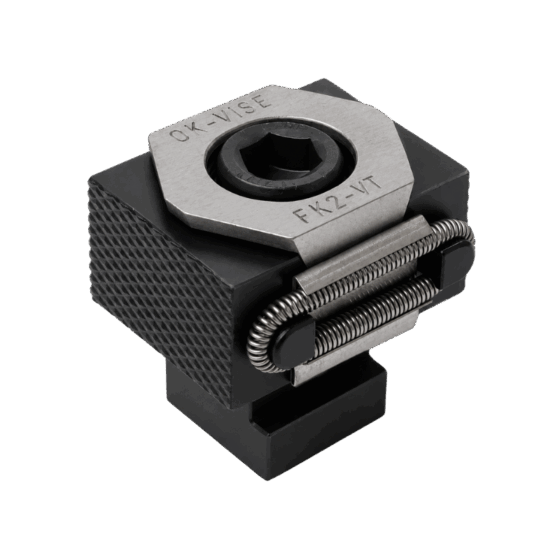

RHC-FR1	Serrated	57	61	65	660	FK2-VT	RHA-F1
RHC-FSR1	Smooth/Serrated						RHA-F1
RHC-FT	Additional piece					FK2-VT-T	RHA-F1
