Hydraulic Hollow Rod Actuator

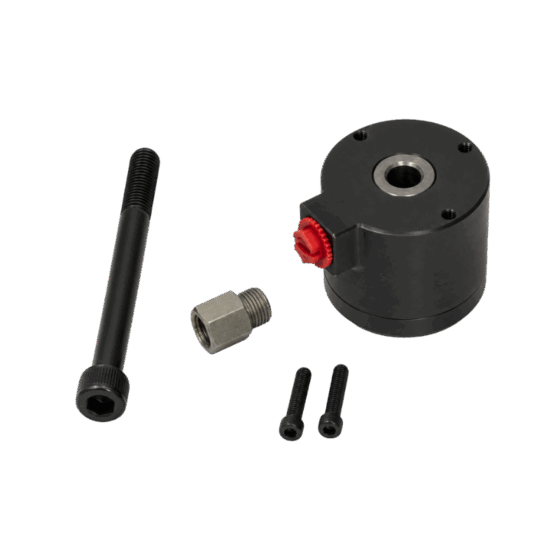

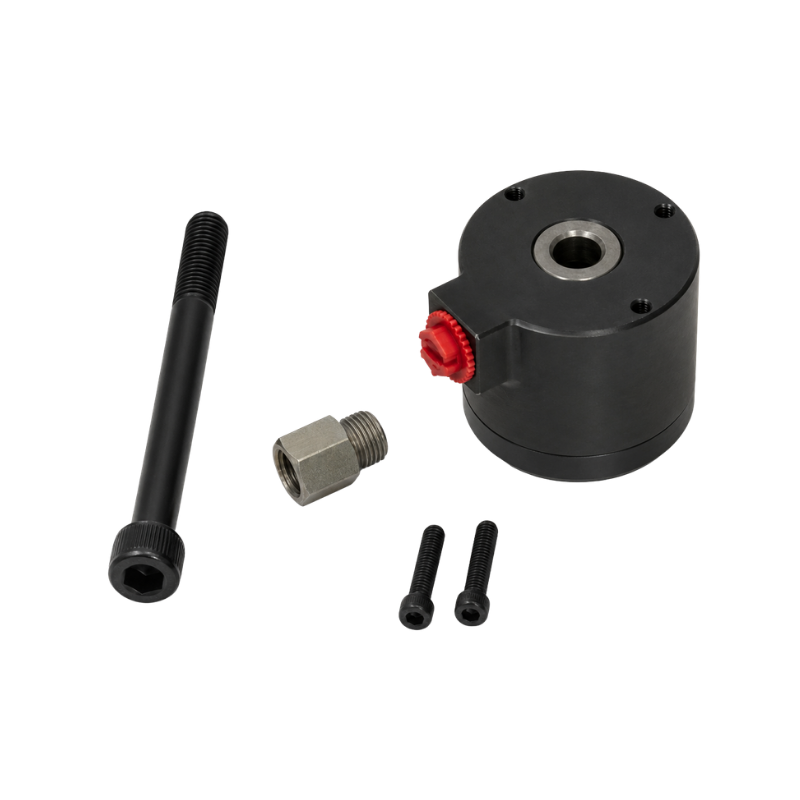

Hydraulic actuator HA-JD1
- Hollow-rod cylinder
- M12 thread
- Cylinder stroke 7,8 mm creates 2 x 3,3 mm clamp jaw movement
- Height 58 mm
- JIC 1/4 connection
- Recommendation max 250 bar
Hydraulic actuator HA-JB1
- Hollow-rod cylinder
- M8 thread
- Height 48 mm
- Cylinder stroke 6,1 mm creates 2 x 2,6 mm clamp jaw movement
- JIC 1/4 connection
- Recommendation max 250 bar
Details
| Type | Piston area/ pull (cm2) | Piston force (kN) at 250 bar / pull | Piston force (kN) at 350 bar / pull | Clamp force (kN) at 250 bar / pull | Clamp force (kN) at 350 bar / pull | Dimensions | STEP (3D) |
| HA-JD1 | 12.3 | 29.6 | 41.4 | 22 | 31 | ||
| HA-JB1 | 6.2 | 14.9 | 20.9 | 11 | 15 |
Request for more information
OK-VISE
Contact your distributor
"*" indicates required fields
Similar Products

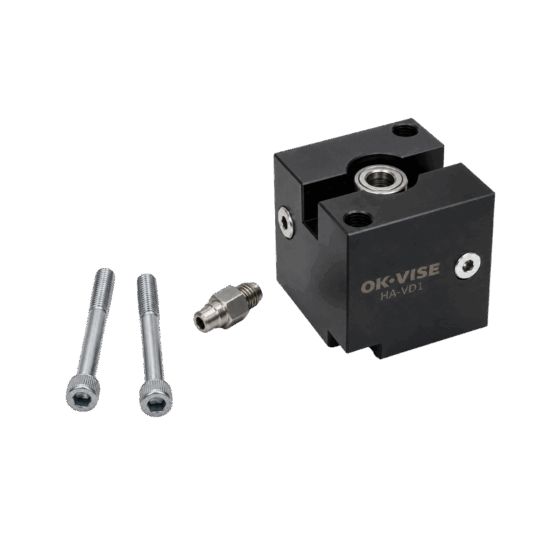

Hydraulic Block Actuator
