Blank System clamp modules
Dedicated workholding

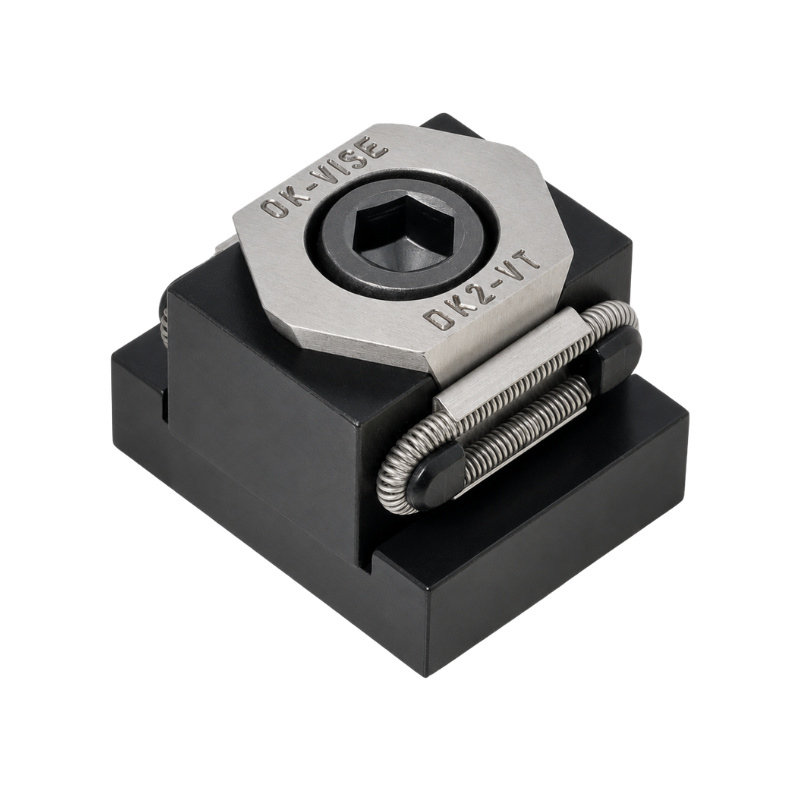

Dual-directional Clamp Modules

These modules clamp in two directions, enabling to clamp two workpieces.

In most cases, code format is KCD-sjn, where “s” corresponds to a clamp size (B or D), “j” is a jaw type (Serrated, Smooth) and “n” is a frame type.

Details

Type	Jaw type	Integrated parallel	A min	A optimum	A max	B	Tightening torgue (max), Nm	Inc. Clamp	Dimensions	STEP (3D)
KCD-DS1	Smooth	yes	42	45	49	11-20	145	DK2-VT-S
KCD-DR1	Serrated	yes	42	45	49	11-20	145	DK2-VT
KCD-DS2	Smooth	no	42	45	49	11-20	145	DK2-VT-S
KCD-DR2	Serrated	no	42	45	49	11-20	145	DK2-VT
