  • Low-Profile Clamps
  • Pull down models

Double-wedge model

Pull-down workholding clamps generate pull-down action pressing workpieces down onto the fixture base, as an alternative to applying sideways force to the jaw on the fixture base.

The double-wedge pull-down clamp is the most traditional model. It is available with both a serrated and smooth jaw option.

Whilst single-wedge clamps keep workpieces tight in one place, preventing upward and downward movement the double-wedge clamps generate a pull-down effect, pressing the workpieces downwards onto the fixture base.

The F-size model with its extreme clamping force of 150 kN is the strongest model in our range of low-profile clamps.

Details

Type Jaw types
 A min A optimum A max B C C1 D E Socket Head Srew DIN 912 Pressing force of Jaws (max), kN Tightening torgue (max), Nm Weight g (*oz) Hardness of Jaws HRC Dimensions STEP (3D)

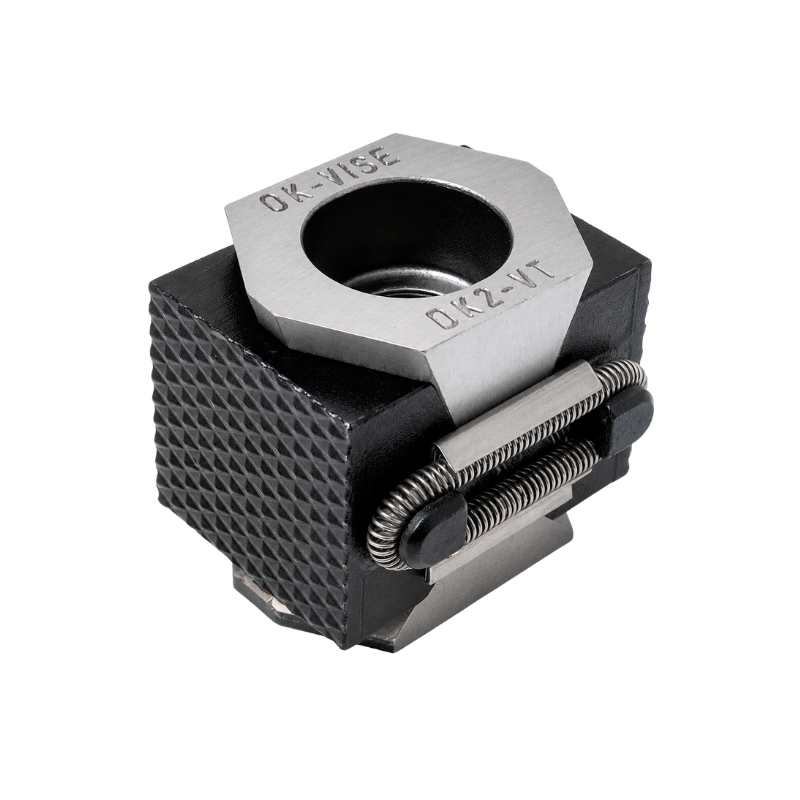

DK2-WT Serrated 42 46 49 41 36 30 30 5 M12x40 90 145 275 48-52 icon pdf
DK2-WTI  (inch model) Serrated 1,61 1,81
 1,92 1,61 1,41 1,18 1,18 0,19 1/2-1 3/4 90 145 9,70* 48-52
DK2-WT-S

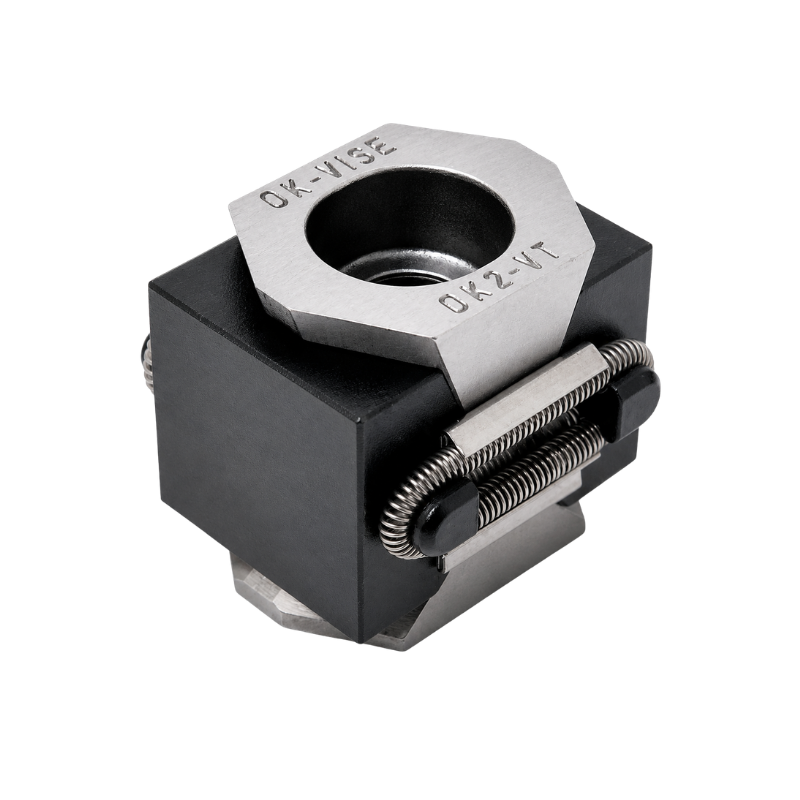

 Smooth 41 45 48 41 36 30 30 5 M12x40 90 145 275 48-52 icon pdf
DK2-WTI-S  (inch model) Smooth 1,64 1,77
 1,88 1,61 1,41 1,18 1,18 0,19 1/2-1 3/4 90 145 9,70* 48-52
FK2-WT Serrated 58 61
 66 56 50 42 42 5 M16x60 150 360 730 48-52 icon pdf
FK2-WT-S
 Smooth 58 61
 66 56 50 42 42 5 M16x60 150 360 730 48-52 icon pdf
