Locating key slots
We also have some typical ways to modify our components.
In addition to the machining options that help to locate or clamp the workpiece, the options shown here below can be used to locate the components on workholding platforms.

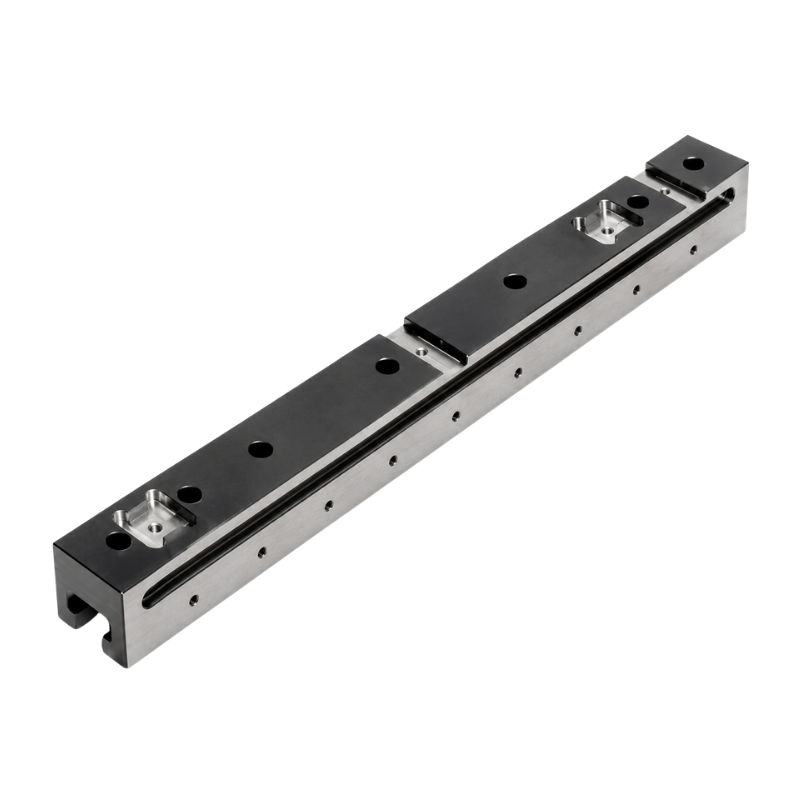

Machining option M-T1 includes key slots that make Multi-Rail installation on T-slot table easier
Details
| Type | Rail-base | A | B | C | D | E | F | L | W Stadard/ (alternative) | Dimensions |
| M-T1 | RM-300 | 44 | 50 | – | 150 | 50 | 200 | 300 | 18/(20) |  |
| M-T1 | RM-400 | 44 | 50 | 50 | 200 | 100 | 250 | 400 | 18/(20) | |
| M-T1 | RM-500 | 44 | 50 | 50 | 250 | 100 | 350 | 500 | 18/(20) | |
| M-T1 | RM-600 | 44 | 50 | 50 | 300 | 100 | 450 | 600 | 18/(20) | |
| M-T1 | RM-700 | 44 | 50 | 50 | 350 | 100 | 500 | 700 | 18/(20) | |
| M-T1 | RM-800 | 44 | 50 | 50 | 400 | 100 | 600 | 800 | 18/(20) | |
| M-T1 |
RH-500 | 60 | 60 | 50 | 250 | 105 | 240 | 500 | 18/(20) |
