Installation Clamps for t-slot platform
This is an option which is typically used to fasten components to a T-slot table, for example when the base rail needs to be perpenducular to T-slots.
ICI-12 For Multi-Rail RM ( 2 pcs )
IC1-12-C For Combo-Rail ( 2 pcs )
Both of these can be used with M12 and 1/2″ bolts.

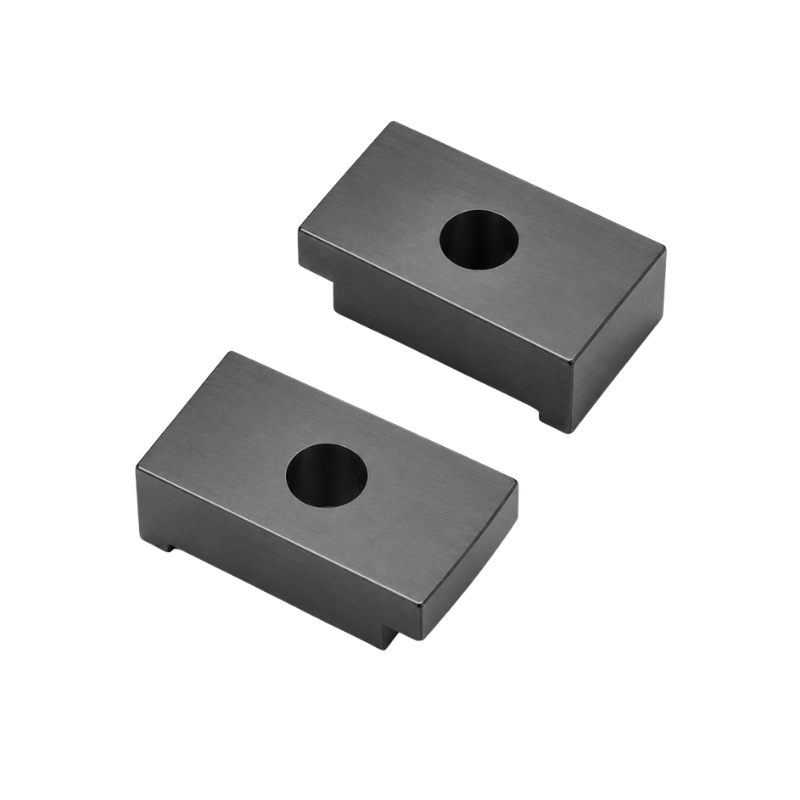

In the picture on the left the clamps have a hole for M16 bolts ( ICI-16 )
Details
| Type | A | B | D | Weight approx. (g) | Dimensions | STEP (3D) |
| ICI-12 | 20 | 11 | 13 | 380 |  |
 |
| ICI-16 | 20 | 11 | 16,5 | 360 | |
|
| ICI-12-C | 16 | 7 | 13 | 300 | |
|
