Coaxial Clamp

Product Overview:

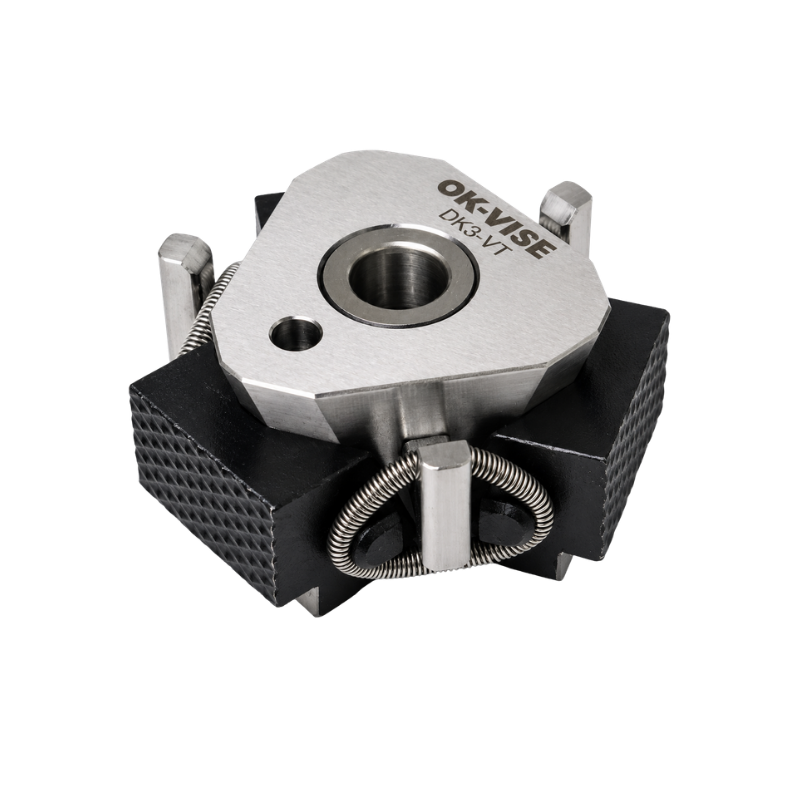

The DK3-VTC-M1 is a coaxial version of the DK3-VT clamp, equipped with the SGB-65A Guide Bolt Set to enable centered, coaxial locating. Without guide bolt set this clamp has a  “floating” function and practically same as DK3-VT-M1.

The M1 jaw type works nicely with jigs that are designed for machining the clamp to a specific diameter.
The stroke af each jaw is max 4 mm. This means that when clamping from a specific size of hole or bore; in unclamped state the clamp diameter will be max. 8 mm smaller than the hole. This speds up the loading process and is a necessity in automated loading.

Key Specifications:

• Coaxial Clamping: Ensures centered, precise clamping
• Alternative Setup: This product can be installed either as co-axial or floating model.
