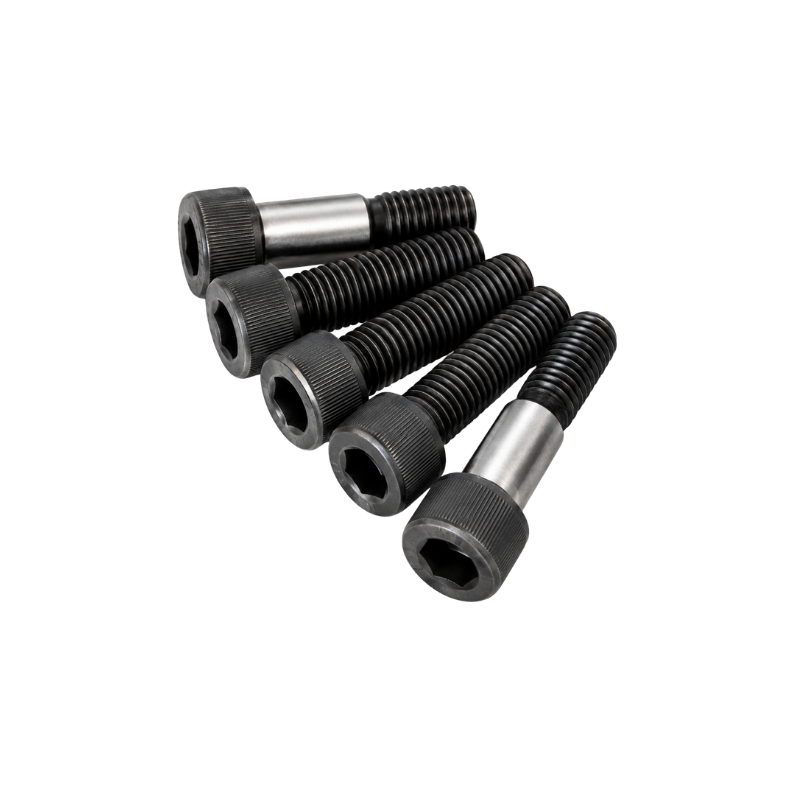

RM Installation Bolt Sets

The following sets are recommended to be used in the installation of the Multi-Rail systems on various platforms.

For example on grid plates with M12 grid these work optimally.

Details

Type	Old Code	Suitable for	Contents	STEP (3D)
AD-RM-100	AD-RM-2	RM-100	2 pcs of shoulder bolts OKSB-45
AD-RM-200	AD-RM-3	RM-200	2 pcs of shoulder bolts OKSB-45 and 1 pcs of standard bolts DIN912M12X45
AD-RM-300	AD-RM-5	RM-300	2 pcs of shoulder bolts OKSB-45 and 3 pcs of standard bolts DIN912M12X45
AD-RM-400	AD-RM-6	RM-400	2 pcs of shoulder bolts OKSB-45 and 4 pcs of standard bolts DIN912M12X45
AD-RM-500	AD-RM-7	RM-500	2 pcs of shoulder bolts OKSB-45 and 5 pcs of standard bolts DIN912M12X45
AD-RM-600	AD-RM-8	RM-600	2 pcs of shoulder bolts OKSB-45 and 6 pcs of standard bolts DIN912M12X45
AD-RM-700	AD-RM-9	RM-700	2 pcs of shoulder bolts OKSB-45 and 7 pcs of standard bolts DIN912M12X45
AD-RM-800	AD-RM-11	RM-800	2 pcs of shoulder bolts OKSB-45 and 9 pcs of standard bolts DIN912M12X45
AD-RM-850	AD-RM-12	RM-850	2 pcs of shoulder bolts OKSB-45 and 10 pcs of standard bolts DIN912M12X45
