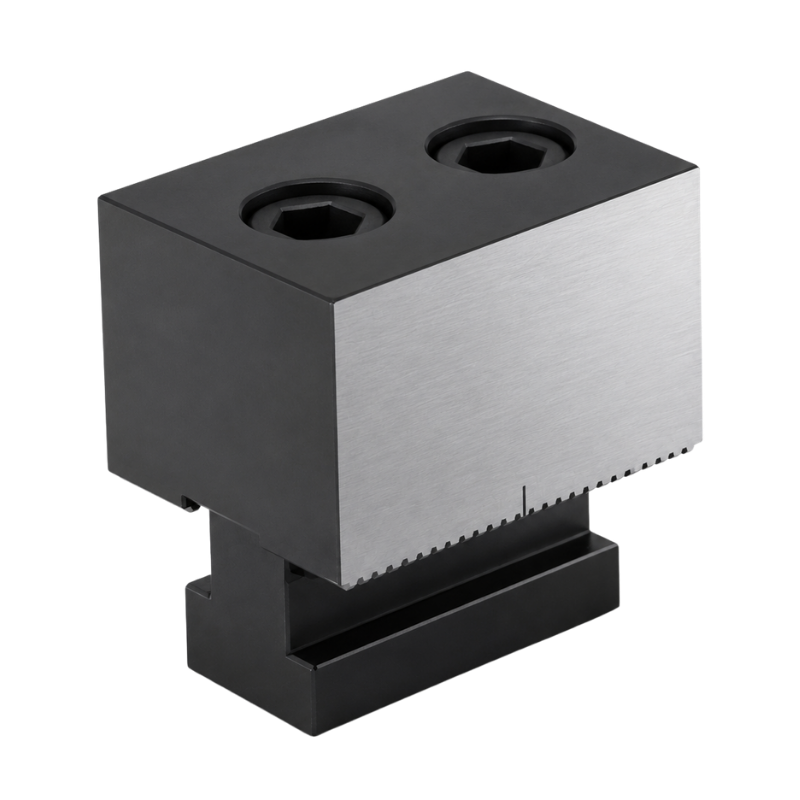

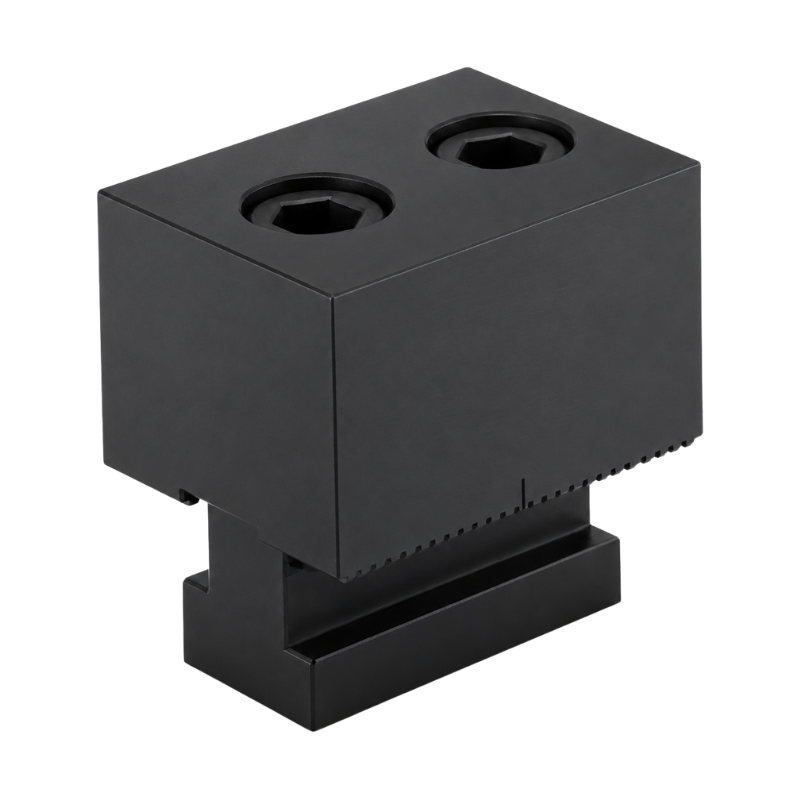

RH Smooth Stop Module high

RHS-S2 has two smooth and nitrited jaws. Its is higher than RHS-S1, so it is useful when

• F-series double-wedge clamps are used

or

• Workpiece is loaded to a tooling block, and extra support while clamping is needed

It is the optimal choice for the second setup to avoid marking, even when OK-VISE clamps are used with full force. Its friction coefficient makes it suitable for roughing and other types of machining where high forces occur.

The accuracy from every serration to the jaw surface is ± 0.01 mm.
