Economy model
The Cost-Efficient Choice.
In our economy workholding clamp models, only the bottom of the jaw is ground.
OK-VISE economy models are used in regular workholding when ultraprecision is not required.
They are made of the same raw materials as other models, and the bottom of the jaws is ground for precise positioning on the fixture base.

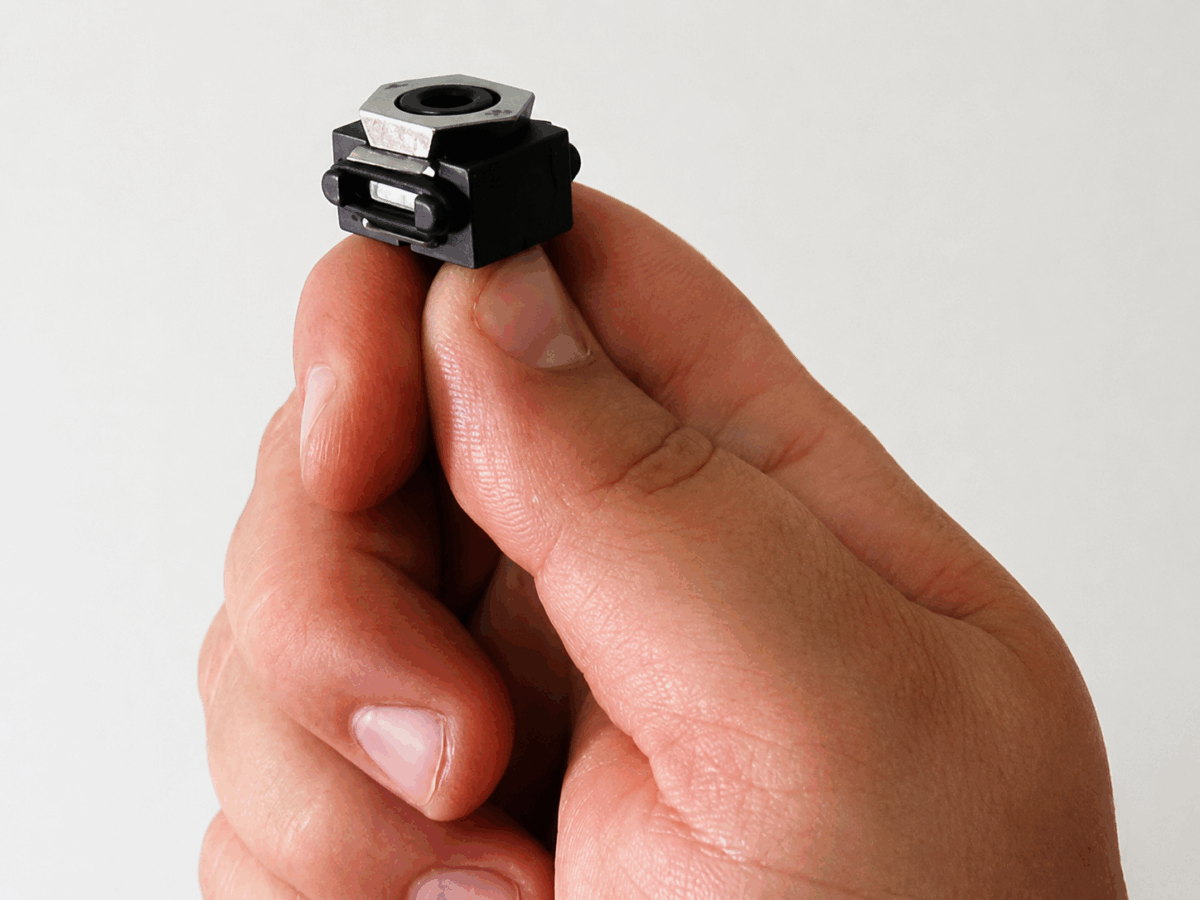

Our smallest series the “micro” clamp (size A) is only available as the economy model. The A-size clamp always comes with Viton O-rings.
Details
| Type | Jaw types | A min | A optimum | A max | B | C | D | E | Socket Head Srew DIN 912 | Pressing force of Jaws (max), kN | Tightening torgue (max), Nm | Weight in g approx. | Hardness of Jaws HRC | Dimensions | STEP (3D) |

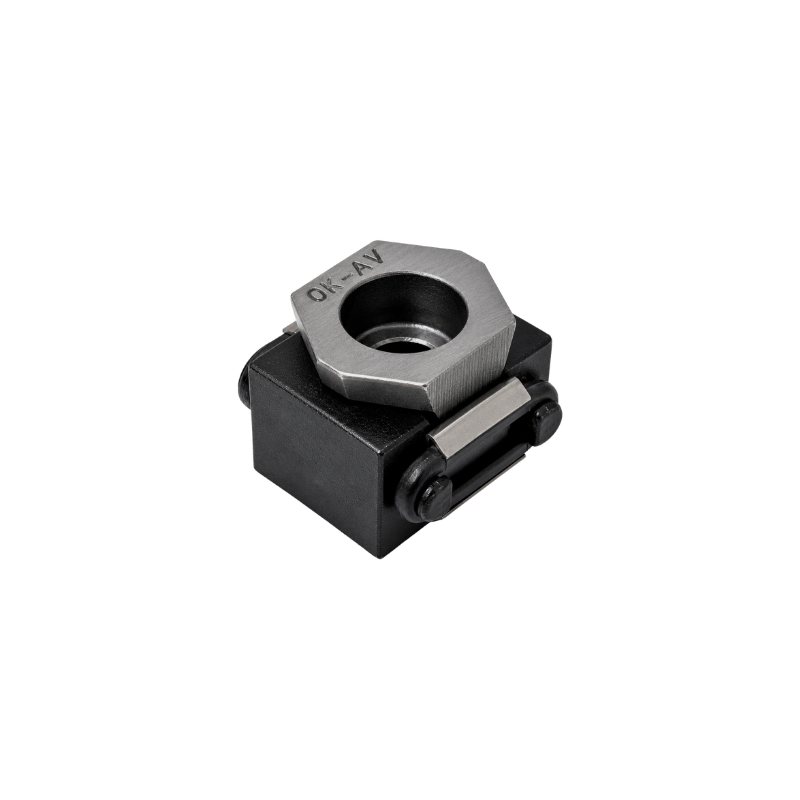

| AK2-VT-SO |
Smooth |
20 | 23 |
25 | 22 | 11 | 15 | 4,2 | M5x25 | 10 | 10 | 22 | 48-52 |  |
 |
| BK2-VT-O | Serrated |
27 | 30 | 33 | 29 | 15 | 21 | 4 | M8x20 | 15 | 25 | 55 | 48-52 | |
|
| BK2-VT-SO | Smooth | 27 | 30 | 33 | 29 | 15 | 21 | 4 | M8x20 | 15 | 25 | 55 | 48-52 | |
|
